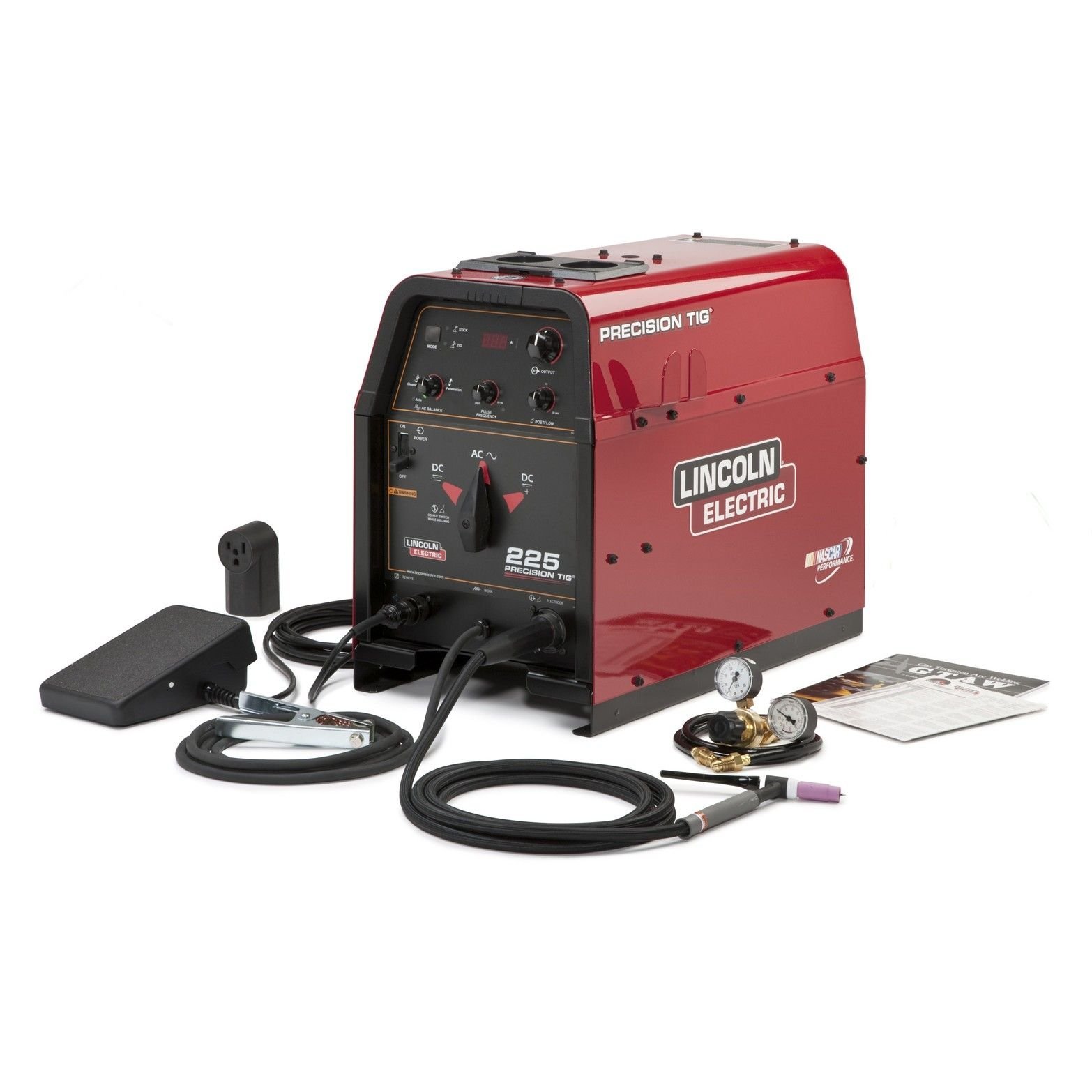

Lincoln Electric Precision TIG 225 K2535-1 AC/DC TIG Welder – Ready-Pak
The Lincoln Precision TIG 225 Ready Pak (K2535-1) is an AC/DC TIG and stick welder on 208/230V single phase, rated 200A at 40%, with 5-230A TIG and 5-200A stick. It has Micro-Start II, AC balance adjustable 30-70%, pulse and post-flow control, and weighs 380 lb.
CONTROL FOR EVERY BEAD
PRECISION WHERE
THE WORK DEMANDS IT
The Lincoln Precision TIG 225 Ready Pak (K2535-1) is an AC/DC TIG and stick welder on 208/230V single phase, rated 200A at 40%, with 5-230A TIG and 5-200A stick. It has Micro-Start II, AC balance adjustable 30-70%, pulse and post-flow control, and weighs 380 lb.
- Brand: Lincoln Electric
- Model: Precision TIG 225 Ready Pak
- MPN: K2535-1
- Processes: AC/DC TIG, Stick
- Input Power: 208/230V, Single Phase
Dependablepower →
COMPLETE PRODUCT INFORMATION
Full Product Description
The Lincoln Precision TIG 225 Ready Pak (K2535-1) is an AC/DC TIG and stick welder on 208/230V single phase, rated 200A at 40%, with 5-230A TIG and 5-200A stick. It has Micro-Start II, AC balance adjustable 30-70%, pulse and post-flow control, and weighs 380 lb.
Specifications
- Brand: Lincoln Electric
- Part / Model Number: K2535-1
- Processes: AC/DC TIG, Stick
- Input Power: 208/230V, Single Phase
- Rated Output: 200A @ 40% Duty Cycle
- Output Range: 5 – 230 Amps (TIG), 5 – 200 Amps (Stick)
- Technology: Micro-Start II for arc stability
- AC Balance Control: Adjustable (30–70%) for aluminum cleaning
- Pulse TIG Capable: Yes
- Post-Flow Time Control: Adjustable
- Weight: 380 lbs (172.4 kg)
- Dimensions: 20.0 in x 28.0 in x 36.2 in (508 x 711 x 919 mm)
- Weldable Materials: Aluminum, Mild Steel, Stainless Steel, Titanium
- Application: Fabrication, Aerospace, Maintenance, Automotive, R&D
- Condition: New
Technical Specifications
Product data| Product | Lincoln Electric Precision TIG 225 K2535-1 AC/DC TIG Welder – Ready-Pak |
|---|---|
| SKU | K2535-1 |
| Brand | Lincoln Electric |
| Model | Precision TIG 225 Ready Pak |
| MPN | K2535-1 |
| Processes | AC/DC TIG, Stick |
| Input Power | 208/230V, Single Phase |
| Rated Output | 200A @ 40% Duty Cycle |
| Output Range | 5 – 230 Amps (TIG), 5 – 200 Amps (Stick) |
| Technology | Micro-Start II for arc stability |
| AC Balance Control | Adjustable (30–70%) for aluminum cleaning |
| Pulse TIG Capable | Yes |
| Post-Flow Time Control | Adjustable |
| Included Accessories | PTA-17 TIG Torch, Work Clamp and Cable, Stick Electrode Holder, Cart, Gas Regulator, and Foot Pedal |
| Weight | 380 lbs (172.4 kg) |
| Dimensions | 20.0 in x 28.0 in x 36.2 in (508 x 711 x 919 mm) |
| Weldable Materials | Aluminum, Mild Steel, Stainless Steel, Titanium |
| Application | Fabrication, Aerospace, Maintenance, Automotive, R&D |
| Google Product Category | 2920 (Welding Machines) |
| Condition | New |
| Warranty | 3-Year Manufacturer’s Warranty |
| Part Number | K2535-1 |
Engineered forreal-world performanceK2535-1
DELIVERY & AFTER-SALES INFORMATION
Shipping & Returns
Important information for this product before and after purchase.Heavy or oversized equipment delivery is coordinated according to the product and destination address.
Timing and applicable delivery arrangements are confirmed during checkout or by Kayros Tool support.
Contact Kayros Tool before returning an item so eligibility, product condition, and return instructions can be confirmed.
Overview
The Lincoln Precision TIG 225 Ready Pak (K2535-1) is an AC/DC TIG and stick welder on 208/230V single phase, rated 200A at 40%, with 5-230A TIG and 5-200A stick. It has Micro-Start II, AC balance adjustable 30-70%, pulse and post-flow control, and weighs 380 lb.
Specifications
- Brand: Lincoln Electric
- Part / Model Number: K2535-1
- Processes: AC/DC TIG, Stick
- Input Power: 208/230V, Single Phase
- Rated Output: 200A @ 40% Duty Cycle
- Output Range: 5 – 230 Amps (TIG), 5 – 200 Amps (Stick)
- Technology: Micro-Start II for arc stability
- AC Balance Control: Adjustable (30–70%) for aluminum cleaning
- Pulse TIG Capable: Yes
- Post-Flow Time Control: Adjustable
- Weight: 380 lbs (172.4 kg)
- Dimensions: 20.0 in x 28.0 in x 36.2 in (508 x 711 x 919 mm)
- Weldable Materials: Aluminum, Mild Steel, Stainless Steel, Titanium
- Application: Fabrication, Aerospace, Maintenance, Automotive, R&D
- Condition: New
Specifications
Brand: Lincoln Electric
Model: Precision TIG 225 Ready Pak
MPN: K2535-1
Processes: AC/DC TIG, Stick
Input Power: 208/230V, Single Phase
Rated Output: 200A @ 40% Duty Cycle
Output Range: 5 – 230 Amps (TIG), 5 – 200 Amps (Stick)
Technology: Micro-Start II for arc stability
AC Balance Control: Adjustable (30–70%) for aluminum cleaning
Pulse TIG Capable: Yes
Post-Flow Time Control: Adjustable
Included Accessories: PTA-17 TIG Torch, Work Clamp and Cable, Stick Electrode Holder, Cart, Gas Regulator, and Foot Pedal
Weight: 380 lbs (172.4 kg)
Dimensions: 20.0 in x 28.0 in x 36.2 in (508 x 711 x 919 mm)
Weldable Materials: Aluminum, Mild Steel, Stainless Steel, Titanium
Application: Fabrication, Aerospace, Maintenance, Automotive, R&D
Google Product Category: 2920 (Welding Machines)
Condition: New
Warranty: 3-Year Manufacturer’s Warranty
Part Number: K2535-1
