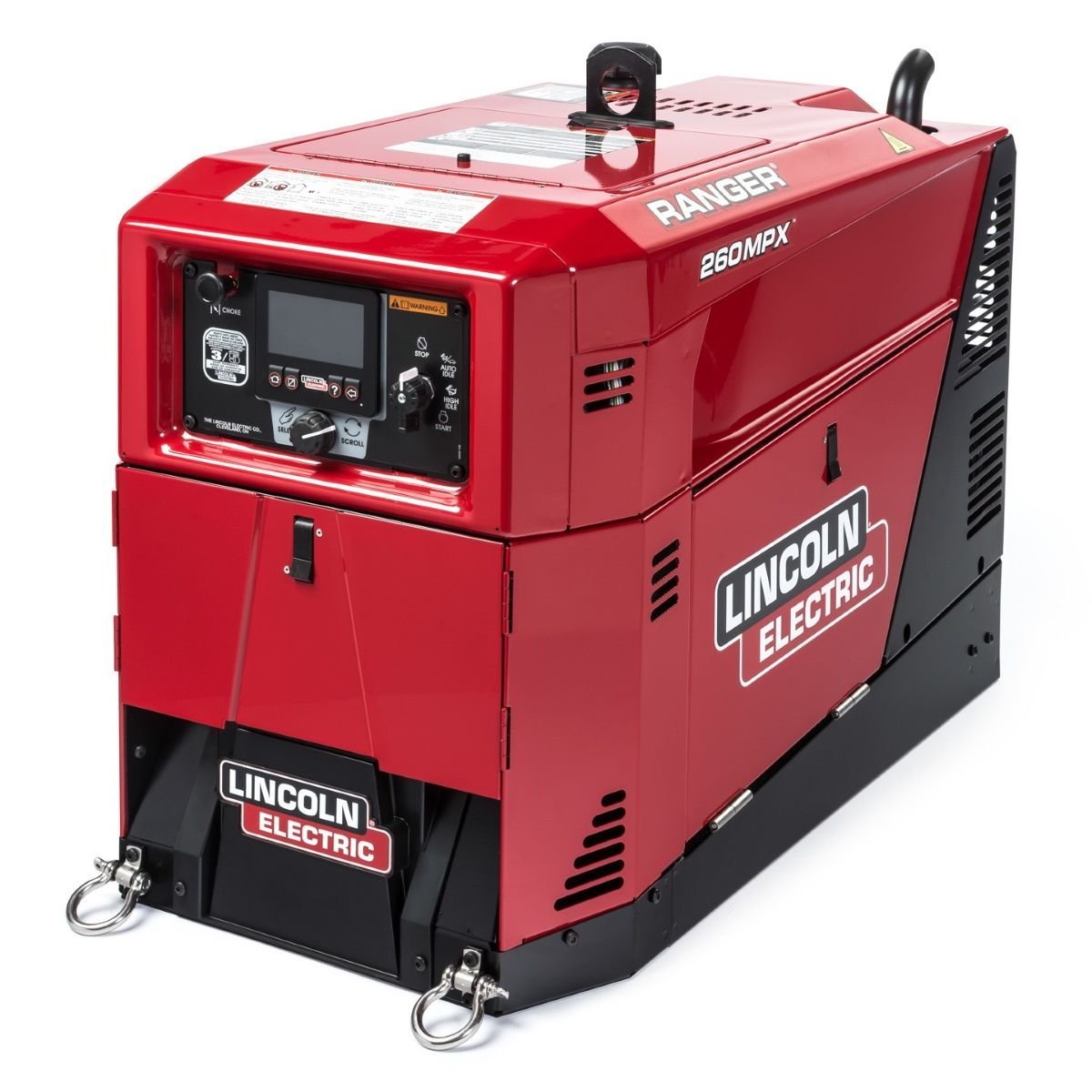

Lincoln Electric Ranger 260 MPX Engine-Driven Welder
The Lincoln Ranger 260 MPX (K3458-1) is a gas engine welder with a 23 HP Kohler CH730 V-twin and electric start. It welds 20-260A (260A at 26V, 100% duty) in stick, TIG, MIG and flux-cored, supplies 10,000W peak / 9,000W continuous through GFCI outlets, has a 12-gallon tank, runs 74.7 dB at 23 feet and weighs 446 lb.
CONTROL FOR EVERY BEAD
PRECISION WHERE
THE WORK DEMANDS IT
The Lincoln Ranger 260 MPX (K3458-1) is a gas engine welder with a 23 HP Kohler CH730 V-twin and electric start. It welds 20-260A (260A at 26V, 100% duty) in stick, TIG, MIG and flux-cored, supplies 10,000W peak / 9,000W continuous through GFCI outlets, has a 12-gallon tank, runs 74.7 dB at 23 feet and weighs 446 lb.
- Brand: Lincoln Electric
- Model: Ranger 260 MPX
- MPN: K3458-1
- Processes: Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW)
- Engine: Kohler CH730, 23 HP, V-Twin, Air-Cooled Gasoline
Dependablepower →
COMPLETE PRODUCT INFORMATION
Full Product Description
The Lincoln Ranger 260 MPX (K3458-1) is a gas engine welder with a 23 HP Kohler CH730 V-twin and electric start. It welds 20-260A (260A at 26V, 100% duty) in stick, TIG, MIG and flux-cored, supplies 10,000W peak / 9,000W continuous through GFCI outlets, has a 12-gallon tank, runs 74.7 dB at 23 feet and weighs 446 lb.
Specifications
- Brand: Lincoln Electric
- Part / Model Number: Ranger 260 MPX
- Processes: Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW)
- Engine: Kohler CH730, 23 HP, V-Twin, Air-Cooled Gasoline
- Welding Output: 260A @ 26V, 100% Duty Cycle
- Output Range: 20 – 260 Amps
- Auxiliary Power: 10,000W Peak / 9,000W Continuous (Clean Power
- Start Type: Electric Start
- Cooling System: Air-Cooled
- Digital Interface: Yes – with maintenance alerts
- Technology: CrossLinc Ready, Chopper Technology
- Fuel Tank Capacity: 12 gallons (45.4 liters)
- Run Time: Up to 14–18 hours (depending on load)
- Noise Level: 74.7 dB @ 23 ft (60% quieter than legacy models)
- Dimensions: 29.9 in L × 21.5 in W × 42.4 in H
- Weight: 446 lbs (202.3 kg)
Technical Specifications
Product data| Product | Lincoln Electric Ranger 260 MPX Engine-Driven Welder |
|---|---|
| SKU | K3458-1 |
| Brand | Lincoln Electric |
| Model | Ranger 260 MPX |
| MPN | K3458-1 |
| Processes | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW) |
| Engine | Kohler CH730, 23 HP, V-Twin, Air-Cooled Gasoline |
| Welding Output | 260A @ 26V, 100% Duty Cycle |
| Output Range | 20 – 260 Amps |
| Auxiliary Power | 10,000W Peak / 9,000W Continuous (Clean Power |
| Start Type | Electric Start |
| Cooling System | Air-Cooled |
| Digital Interface | Yes – with maintenance alerts |
| Technology | CrossLinc Ready, Chopper Technology |
| Fuel Tank Capacity | 12 gallons (45.4 liters) |
| Run Time | Up to 14–18 hours (depending on load) |
| Noise Level | 74.7 dB @ 23 ft (60% quieter than legacy models) |
| Dimensions | 29.9 in L × 21.5 in W × 42.4 in H |
| Weight | 446 lbs (202.3 kg) |
| Outlets | 120V & 240V GFCI-protected |
| Google Product Category | 2920 (Welding Machines) |
| Warranty | 3-Year Lincoln Electric Limited Warranty |
| Part Number | K3458-1 |
Engineered forreal-world performanceK3458-1
DELIVERY & AFTER-SALES INFORMATION
Shipping & Returns
Important information for this product before and after purchase.Heavy or oversized equipment delivery is coordinated according to the product and destination address.
Timing and applicable delivery arrangements are confirmed during checkout or by Kayros Tool support.
Contact Kayros Tool before returning an item so eligibility, product condition, and return instructions can be confirmed.
Overview
The Lincoln Ranger 260 MPX (K3458-1) is a gas engine welder with a 23 HP Kohler CH730 V-twin and electric start. It welds 20-260A (260A at 26V, 100% duty) in stick, TIG, MIG and flux-cored, supplies 10,000W peak / 9,000W continuous through GFCI outlets, has a 12-gallon tank, runs 74.7 dB at 23 feet and weighs 446 lb.
Specifications
- Brand: Lincoln Electric
- Part / Model Number: Ranger 260 MPX
- Processes: Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW)
- Engine: Kohler CH730, 23 HP, V-Twin, Air-Cooled Gasoline
- Welding Output: 260A @ 26V, 100% Duty Cycle
- Output Range: 20 – 260 Amps
- Auxiliary Power: 10,000W Peak / 9,000W Continuous (Clean Power
- Start Type: Electric Start
- Cooling System: Air-Cooled
- Digital Interface: Yes – with maintenance alerts
- Technology: CrossLinc Ready, Chopper Technology
- Fuel Tank Capacity: 12 gallons (45.4 liters)
- Run Time: Up to 14–18 hours (depending on load)
- Noise Level: 74.7 dB @ 23 ft (60% quieter than legacy models)
- Dimensions: 29.9 in L × 21.5 in W × 42.4 in H
- Weight: 446 lbs (202.3 kg)
Specifications
Brand: Lincoln Electric
Model: Ranger 260 MPX
MPN: K3458-1
Processes: Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW)
Engine: Kohler CH730, 23 HP, V-Twin, Air-Cooled Gasoline
Welding Output: 260A @ 26V, 100% Duty Cycle
Output Range: 20 – 260 Amps
Auxiliary Power: 10,000W Peak / 9,000W Continuous (Clean Power
Start Type: Electric Start
Cooling System: Air-Cooled
Digital Interface: Yes – with maintenance alerts
Technology: CrossLinc Ready, Chopper Technology
Fuel Tank Capacity: 12 gallons (45.4 liters)
Run Time: Up to 14–18 hours (depending on load)
Noise Level: 74.7 dB @ 23 ft (60% quieter than legacy models)
Dimensions: 29.9 in L × 21.5 in W × 42.4 in H
Weight: 446 lbs (202.3 kg)
Outlets: 120V & 240V GFCI-protected
Google Product Category: 2920 (Welding Machines)
Warranty: 3-Year Lincoln Electric Limited Warranty
Part Number: K3458-1
