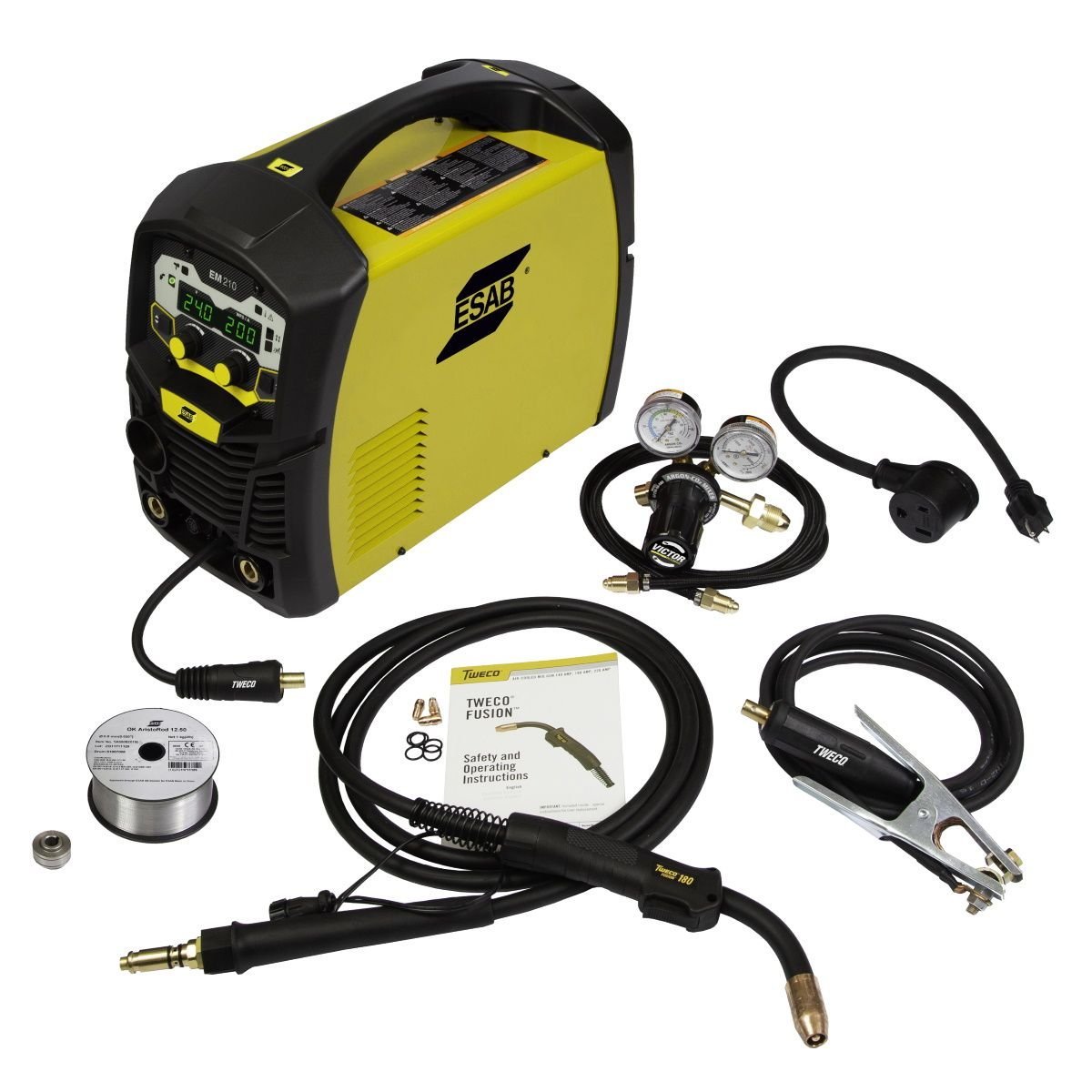

ESAB EM 210 0700501200 Portable MIG Welder – 210A
The ESAB EM 210 (0700501200) is a portable MIG and flux-cored welder on 120/230V single phase with 30-200A output: 130A at 30% duty on 120V and 200A at 25% on 230V. It takes 0.023-0.035-inch wire, is spool gun ready for aluminum, has digital meters, IP21S rating and weighs 29 lb. at 16.9 x 7.8 x 13.6 inches.
CONTROL FOR EVERY BEAD
PRECISION WHERE
THE WORK DEMANDS IT
The ESAB EM 210 (0700501200) is a portable MIG and flux-cored welder on 120/230V single phase with 30-200A output: 130A at 30% duty on 120V and 200A at 25% on 230V. It takes 0.023-0.035-inch wire, is spool gun ready for aluminum, has digital meters, IP21S rating and weighs 29 lb. at 16.9 x 7.8 x 13.6 inches.
- Brand: ESAB
- Model: EM 210
- Part Number (MPN): 0700501200
- Process Type: MIG (GMAW), Flux-Cored (FCAW-G and FCAW-S)
- Input Voltage: 120V / 230V, 50/60Hz
Dependablepower →
COMPLETE PRODUCT INFORMATION
Full Product Description
The ESAB EM 210 (0700501200) is a portable MIG and flux-cored welder on 120/230V single phase with 30-200A output: 130A at 30% duty on 120V and 200A at 25% on 230V. It takes 0.023-0.035-inch wire, is spool gun ready for aluminum, has digital meters, IP21S rating and weighs 29 lb. at 16.9 x 7.8 x 13.6 inches.
Specifications
- Brand: ESAB
- Part / Model Number: 700501200
- Process Type: MIG (GMAW), Flux-Cored (FCAW-G and FCAW-S)
- Input Voltage: 120V / 230V, 50/60Hz
- Input Phase: 1-Phase
- Output Range: 30A – 200A
- Rated Output: 120V: 130A @ 25.2V, 30% duty cycle
- 230V: 200A @ 24V, 25% duty cycle
- Wire Diameter Range: 0.023 in – 0.035 in (0.6 – 0.9 mm)
- Compatible Wires: Solid Steel, Stainless, Flux-Cored, Aluminum (with spool gun)
- Display: Digital voltage and amperage readouts
- Cooling Method: Fan-cooled
- Protection Class: IP21S
- Weight: 29 lbs (13.2 kg)
- Dimensions: 16.9 x 7.8 x 13.6 in (430 x 198 x 345 mm)
Technical Specifications
Product data| Product | ESAB EM 210 0700501200 Portable MIG Welder – 210A |
|---|---|
| SKU | 700501200 |
| Brand | ESAB |
| Model | EM 210 |
| Part Number (MPN) | 0700501200 |
| Process Type | MIG (GMAW), Flux-Cored (FCAW-G and FCAW-S) |
| Input Voltage | 120V / 230V, 50/60Hz |
| Input Phase | 1-Phase |
| Output Range | 30A – 200A |
| Rated Output | 120V: 130A @ 25.2V, 30% duty cycle |
| 230V | 200A @ 24V, 25% duty cycle |
| Wire Diameter Range | 0.023 in – 0.035 in (0.6 – 0.9 mm) |
| Compatible Wires | Solid Steel, Stainless, Flux-Cored, Aluminum (with spool gun) |
| Spool Gun Ready | Yes (Tweco Fusion Spool Gun compatible) |
| Display | Digital voltage and amperage readouts |
| Cooling Method | Fan-cooled |
| Protection Class | IP21S |
| Weight | 29 lbs (13.2 kg) |
| Dimensions | 16.9 x 7.8 x 13.6 in (430 x 198 x 345 mm) |
| Warranty | 3-Year ESAB Warranty |
| Country of Origin | USA |
| Google Product Category | 2920 (Welding Machines) |
| Part Number | 700501200 |
Engineered forreal-world performance700501200
DELIVERY & AFTER-SALES INFORMATION
Shipping & Returns
Important information for this product before and after purchase.Heavy or oversized equipment delivery is coordinated according to the product and destination address.
Timing and applicable delivery arrangements are confirmed during checkout or by Kayros Tool support.
Contact Kayros Tool before returning an item so eligibility, product condition, and return instructions can be confirmed.
Overview
The ESAB EM 210 (0700501200) is a portable MIG and flux-cored welder on 120/230V single phase with 30-200A output: 130A at 30% duty on 120V and 200A at 25% on 230V. It takes 0.023-0.035-inch wire, is spool gun ready for aluminum, has digital meters, IP21S rating and weighs 29 lb. at 16.9 x 7.8 x 13.6 inches.
Specifications
- Brand: ESAB
- Part / Model Number: 700501200
- Process Type: MIG (GMAW), Flux-Cored (FCAW-G and FCAW-S)
- Input Voltage: 120V / 230V, 50/60Hz
- Input Phase: 1-Phase
- Output Range: 30A – 200A
- Rated Output: 120V: 130A @ 25.2V, 30% duty cycle
- 230V: 200A @ 24V, 25% duty cycle
- Wire Diameter Range: 0.023 in – 0.035 in (0.6 – 0.9 mm)
- Compatible Wires: Solid Steel, Stainless, Flux-Cored, Aluminum (with spool gun)
- Display: Digital voltage and amperage readouts
- Cooling Method: Fan-cooled
- Protection Class: IP21S
- Weight: 29 lbs (13.2 kg)
- Dimensions: 16.9 x 7.8 x 13.6 in (430 x 198 x 345 mm)
Specifications
Brand: ESAB
Model: EM 210
Part Number (MPN): 0700501200
Process Type: MIG (GMAW), Flux-Cored (FCAW-G and FCAW-S)
Input Voltage: 120V / 230V, 50/60Hz
Input Phase: 1-Phase
Output Range: 30A – 200A
Rated Output: 120V: 130A @ 25.2V, 30% duty cycle
230V: 200A @ 24V, 25% duty cycle
Wire Diameter Range: 0.023 in – 0.035 in (0.6 – 0.9 mm)
Compatible Wires: Solid Steel, Stainless, Flux-Cored, Aluminum (with spool gun)
Spool Gun Ready: Yes (Tweco Fusion Spool Gun compatible)
Display: Digital voltage and amperage readouts
Cooling Method: Fan-cooled
Protection Class: IP21S
Weight: 29 lbs (13.2 kg)
Dimensions: 16.9 x 7.8 x 13.6 in (430 x 198 x 345 mm)
Warranty: 3-Year ESAB Warranty
Country of Origin: USA
Google Product Category: 2920 (Welding Machines)
Part Number: 700501200
