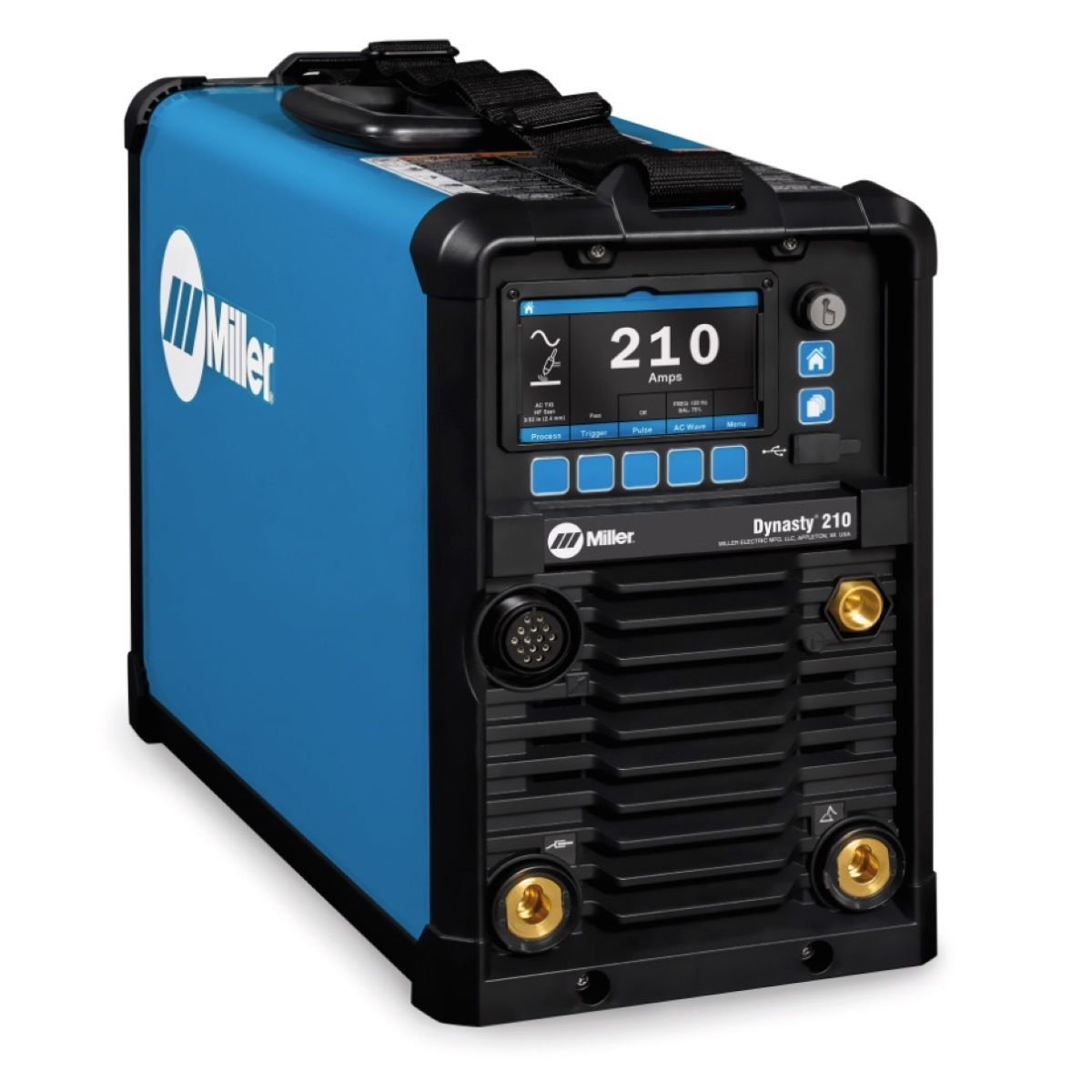

Miller Dynasty 210 907816001 AC/DC TIG Welder – CPS, Auto-Line 120–480V
The Miller Dynasty 210 (907816001) is an AC/DC TIG and stick welder with Auto-Line input from 120 to 480V, single or 3-phase, and an integrated cooler power supply.
CONTROL FOR EVERY BEAD
PRECISION WHERE
THE WORK DEMANDS IT
The Miller Dynasty 210 (907816001) is an AC/DC TIG and stick welder with Auto-Line input from 120 to 480V, single or 3-phase, and an integrated cooler power supply.
- Voltage: 480V
- Brand: Miller
- Model: Dynasty 210 TIG Welder with CPS
- MPN: 907816001
- Welding Processes: TIG (GTAW), Stick (SMAW)
Dependablepower →
COMPLETE PRODUCT INFORMATION
Full Product Description
The Miller Dynasty 210 (907816001) is an AC/DC TIG and stick welder with Auto-Line input from 120 to 480V, single or 3-phase, and an integrated cooler power supply. TIG range is 1-210A (60% at 210A) and stick 20-175A (30% at 175A), with four AC waveforms, 20-400 Hz frequency, adjustable balance, HF start and 50 lb. weight.
Specifications
- Brand: Miller
- Part / Model Number: 907816001
- Voltage: 480V
- Welding Processes: TIG (GTAW), Stick (SMAW)
- Input Voltage: 120V–480V, 1-Phase or 3-Phase
- Amperage Range (TIG): 1–210 Amps
- Amperage Range (Stick): 20–175 Amps
- Duty Cycle (TIG): 60% @ 210A
- Duty Cycle (Stick): 30% @ 175A
- Weight: 50 lbs (22.7 kg)
- Dimensions: 13.6 in H × 7.1 in W × 17 in D
- Power Source: Auto-Line, Accepts 120V–480V
- CPS: Integrated Cooler Power Supply
- Waveforms: Sine, Square, Soft Square, Triangular
- AC Frequency Control: 20–400 Hz
- AC Balance Control: Yes (Adjustable)
Technical Specifications
Product data| Product | Miller Dynasty 210 907816001 AC/DC TIG Welder – CPS, Auto-Line 120–480V |
|---|---|
| SKU | 907816001 |
| Voltage | 480V |
| Brand | Miller |
| Model | Dynasty 210 TIG Welder with CPS |
| MPN | 907816001 |
| Welding Processes | TIG (GTAW), Stick (SMAW) |
| Input Voltage | 120V–480V, 1-Phase or 3-Phase |
| Amperage Range (TIG) | 1–210 Amps |
| Amperage Range (Stick) | 20–175 Amps |
| Duty Cycle (TIG) | 60% @ 210A |
| Duty Cycle (Stick) | 30% @ 175A |
| Weight | 50 lbs (22.7 kg) |
| Dimensions | 13.6 in H × 7.1 in W × 17 in D |
| Power Source | Auto-Line, Accepts 120V–480V |
| CPS | Integrated Cooler Power Supply |
| Waveforms | Sine, Square, Soft Square, Triangular |
| AC Frequency Control | 20–400 Hz |
| AC Balance Control | Yes (Adjustable) |
| HF Start | Yes |
| Pulsed TIG | Yes |
| Applications | Fabrication, Aerospace, Automotive, Shipbuilding, Pipe Welding |
| Digital Display | Yes with Menu Navigation |
| Part Number | 907816001 |
Engineered forreal-world performance907816001
DELIVERY & AFTER-SALES INFORMATION
Shipping & Returns
Important information for this product before and after purchase.Heavy or oversized equipment delivery is coordinated according to the product and destination address.
Timing and applicable delivery arrangements are confirmed during checkout or by Kayros Tool support.
Contact Kayros Tool before returning an item so eligibility, product condition, and return instructions can be confirmed.
Overview
The Miller Dynasty 210 (907816001) is an AC/DC TIG and stick welder with Auto-Line input from 120 to 480V, single or 3-phase, and an integrated cooler power supply. TIG range is 1-210A (60% at 210A) and stick 20-175A (30% at 175A), with four AC waveforms, 20-400 Hz frequency, adjustable balance, HF start and 50 lb. weight.
Specifications
- Brand: Miller
- Part / Model Number: 907816001
- Voltage: 480V
- Welding Processes: TIG (GTAW), Stick (SMAW)
- Input Voltage: 120V–480V, 1-Phase or 3-Phase
- Amperage Range (TIG): 1–210 Amps
- Amperage Range (Stick): 20–175 Amps
- Duty Cycle (TIG): 60% @ 210A
- Duty Cycle (Stick): 30% @ 175A
- Weight: 50 lbs (22.7 kg)
- Dimensions: 13.6 in H × 7.1 in W × 17 in D
- Power Source: Auto-Line, Accepts 120V–480V
- CPS: Integrated Cooler Power Supply
- Waveforms: Sine, Square, Soft Square, Triangular
- AC Frequency Control: 20–400 Hz
- AC Balance Control: Yes (Adjustable)
Specifications
Voltage: 480V
Brand: Miller
Model: Dynasty 210 TIG Welder with CPS
MPN: 907816001
Welding Processes: TIG (GTAW), Stick (SMAW)
Input Voltage: 120V–480V, 1-Phase or 3-Phase
Amperage Range (TIG): 1–210 Amps
Amperage Range (Stick): 20–175 Amps
Duty Cycle (TIG): 60% @ 210A
Duty Cycle (Stick): 30% @ 175A
Weight: 50 lbs (22.7 kg)
Dimensions: 13.6 in H × 7.1 in W × 17 in D
Power Source: Auto-Line, Accepts 120V–480V
CPS: Integrated Cooler Power Supply
Waveforms: Sine, Square, Soft Square, Triangular
AC Frequency Control: 20–400 Hz
AC Balance Control: Yes (Adjustable)
HF Start: Yes
Pulsed TIG: Yes
Applications: Fabrication, Aerospace, Automotive, Shipbuilding, Pipe Welding
Digital Display: Yes with Menu Navigation
Part Number: 907816001
