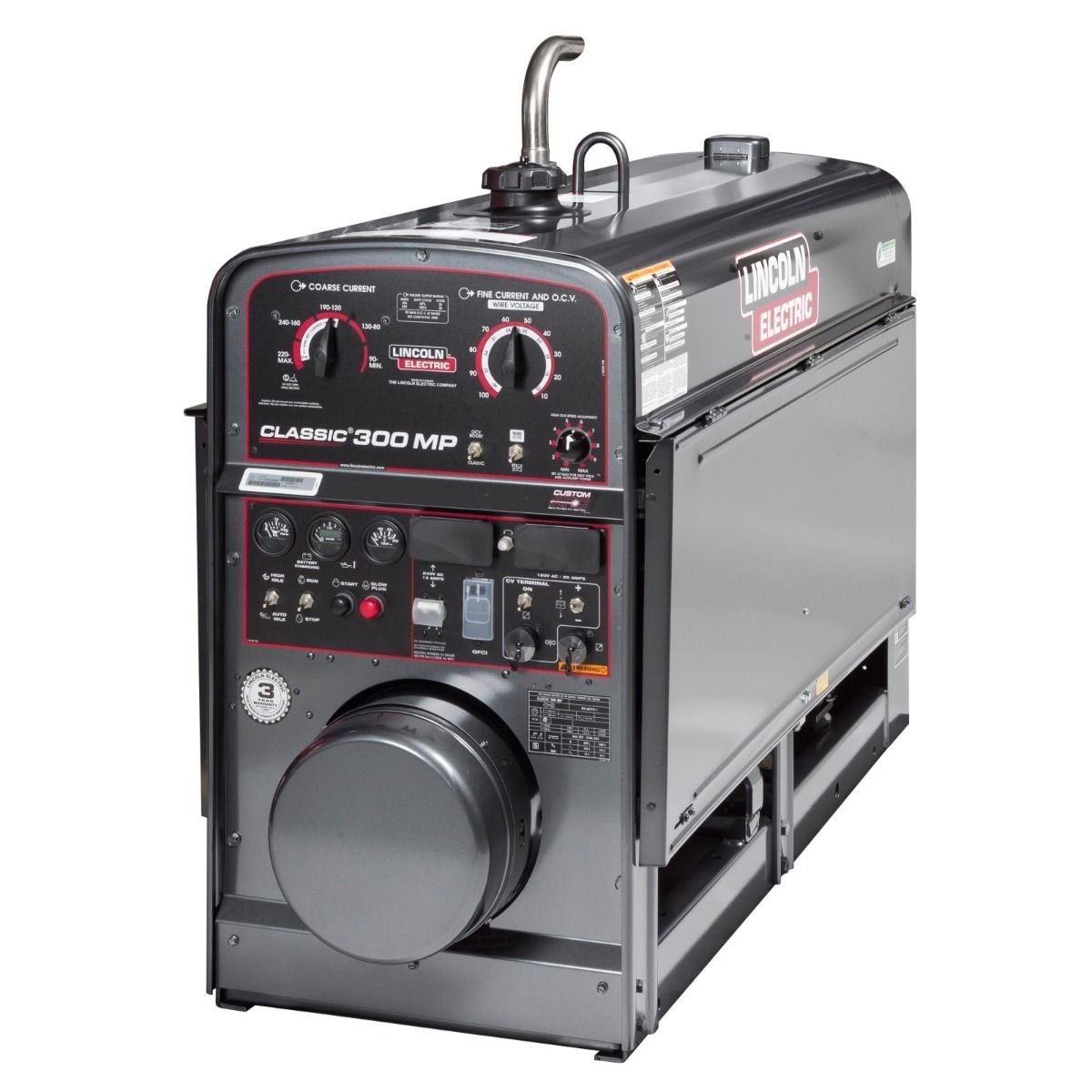

Lincoln Electric Classic 300 MP Kubota Diesel CC/CV Welder/Generator
The Lincoln Classic 300 MP (K4264-1) is a CC/CV welder generator with a Kubota D1503 Tier 4 Final diesel (24.7 HP at 1,800 RPM) and 17-gallon tank.
BUILT TO KEEP YOU MOVING
POWER WHEN
IT MATTERS MOST
The Lincoln Classic 300 MP (K4264-1) is a CC/CV welder generator with a Kubota D1503 Tier 4 Final diesel (24.7 HP at 1,800 RPM) and 17-gallon tank.
- Brand: Lincoln Electric
- Model: Classic 300 MP (Kubota Diesel)
- MPN: K4264-1
- Engine: Kubota D1503, 3-Cylinder, Tier 4 Final Diesel
- Engine Power: 24.7 HP @ 1,800 RPM
Dependablepower →
COMPLETE PRODUCT INFORMATION
Full Product Description
The Lincoln Classic 300 MP (K4264-1) is a CC/CV welder generator with a Kubota D1503 Tier 4 Final diesel (24.7 HP at 1,800 RPM) and 17-gallon tank. It welds 40-300A DC (100% at 250A) in stick, DC TIG, MIG and flux-cored with mechanical controls, gives 3,000W at 120/240V, has a brushless alternator and stainless panels; 66 x 24.6 x 40 inches, about 1,585 lb., about 76 dB at 23 feet.
Specifications
- Brand: Lincoln Electric
- Part / Model Number: K4264-1
- Engine: Kubota D1503, 3-Cylinder, Tier 4 Final Diesel
- Engine Power: 24.7 HP @ 1,800 RPM
- Fuel Type: Diesel
- Fuel Tank Capacity: 17 gallons (64.3 liters)
- Welding Output: 40 – 300 Amps DC
- Welding Duty Cycle: 100% at 250A
- Processes Supported: Stick, DC TIG, MIG, Flux-Cored (CV mode)
- Output Control: All-mechanical with fine control dial
- Generator Power: 3,000W continuous @ 120/240V AC
- Arc Characteristic: Pure DC output for X-ray quality welds
- Alternator Type: Brushless, maintenance-free
- Enclosure: Stainless steel roof and side panels
- Dimensions: 66 in L × 24.6 in W × 40 in H
- Weight: Approx. 1,585 lbs (719 kg)
Technical Specifications
Product data| Product | Lincoln Electric Classic 300 MP Kubota Diesel CC/CV Welder/Generator |
|---|---|
| SKU | K4264-1 |
| Brand | Lincoln Electric |
| Model | Classic 300 MP (Kubota Diesel) |
| MPN | K4264-1 |
| Engine | Kubota D1503, 3-Cylinder, Tier 4 Final Diesel |
| Engine Power | 24.7 HP @ 1,800 RPM |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 17 gallons (64.3 liters) |
| Welding Output | 40 – 300 Amps DC |
| Welding Duty Cycle | 100% at 250A |
| Processes Supported | Stick, DC TIG, MIG, Flux-Cored (CV mode) |
| Output Control | All-mechanical with fine control dial |
| Generator Power | 3,000W continuous @ 120/240V AC |
| Arc Characteristic | Pure DC output for X-ray quality welds |
| Alternator Type | Brushless, maintenance-free |
| Enclosure | Stainless steel roof and side panels |
| Dimensions | 66 in L × 24.6 in W × 40 in H |
| Weight | Approx. 1,585 lbs (719 kg) |
| Noise Level | ~76 dB @ 23 ft under load |
| GTIN | 015082680884 |
| Google Product Category | 2920 (Welding Machines) |
| Part Number | K4264-1 |
Engineered forreal-world performanceK4264-1
DELIVERY & AFTER-SALES INFORMATION
Shipping & Returns
Important information for this product before and after purchase.Heavy or oversized equipment delivery is coordinated according to the product and destination address.
Timing and applicable delivery arrangements are confirmed during checkout or by Kayros Tool support.
Contact Kayros Tool before returning an item so eligibility, product condition, and return instructions can be confirmed.
Overview
The Lincoln Classic 300 MP (K4264-1) is a CC/CV welder generator with a Kubota D1503 Tier 4 Final diesel (24.7 HP at 1,800 RPM) and 17-gallon tank. It welds 40-300A DC (100% at 250A) in stick, DC TIG, MIG and flux-cored with mechanical controls, gives 3,000W at 120/240V, has a brushless alternator and stainless panels; 66 x 24.6 x 40 inches, about 1,585 lb., about 76 dB at 23 feet.
Specifications
- Brand: Lincoln Electric
- Part / Model Number: K4264-1
- Engine: Kubota D1503, 3-Cylinder, Tier 4 Final Diesel
- Engine Power: 24.7 HP @ 1,800 RPM
- Fuel Type: Diesel
- Fuel Tank Capacity: 17 gallons (64.3 liters)
- Welding Output: 40 – 300 Amps DC
- Welding Duty Cycle: 100% at 250A
- Processes Supported: Stick, DC TIG, MIG, Flux-Cored (CV mode)
- Output Control: All-mechanical with fine control dial
- Generator Power: 3,000W continuous @ 120/240V AC
- Arc Characteristic: Pure DC output for X-ray quality welds
- Alternator Type: Brushless, maintenance-free
- Enclosure: Stainless steel roof and side panels
- Dimensions: 66 in L × 24.6 in W × 40 in H
- Weight: Approx. 1,585 lbs (719 kg)
Specifications
Brand: Lincoln Electric
Model: Classic 300 MP (Kubota Diesel)
MPN: K4264-1
Engine: Kubota D1503, 3-Cylinder, Tier 4 Final Diesel
Engine Power: 24.7 HP @ 1,800 RPM
Fuel Type: Diesel
Fuel Tank Capacity: 17 gallons (64.3 liters)
Welding Output: 40 – 300 Amps DC
Welding Duty Cycle: 100% at 250A
Processes Supported: Stick, DC TIG, MIG, Flux-Cored (CV mode)
Output Control: All-mechanical with fine control dial
Generator Power: 3,000W continuous @ 120/240V AC
Arc Characteristic: Pure DC output for X-ray quality welds
Alternator Type: Brushless, maintenance-free
Enclosure: Stainless steel roof and side panels
Dimensions: 66 in L × 24.6 in W × 40 in H
Weight: Approx. 1,585 lbs (719 kg)
Noise Level: ~76 dB @ 23 ft under load
GTIN: 015082680884
Google Product Category: 2920 (Welding Machines)
Part Number: K4264-1
Shipping & Returns
NST Cargo coordination: Heavy or oversized equipment delivery is coordinated according to the product and destination address.
Delivery estimate: Timing and applicable arrangements are confirmed during checkout or by Kayros Tool support.
Returns: Contact Kayros Tool before returning an item so eligibility, condition, and instructions can be confirmed.
