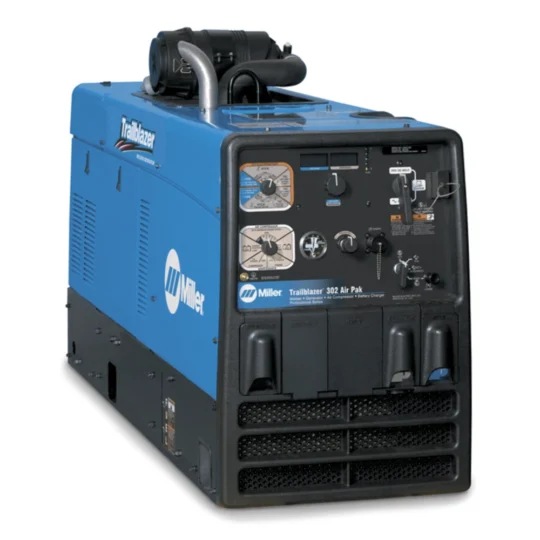

Miller Trailblazer 302 Air Pak Kohler Welder/Generator – GFCI, Electric Fuel Pump
The Miller Trailblazer 302 Air Pak (907549) is a gas welder/generator with a 23.5 HP Kohler CH730 V-twin, 12-gallon tank and electric fuel pump.
BUILT TO KEEP YOU MOVING
POWER WHEN
IT MATTERS MOST
The Miller Trailblazer 302 Air Pak (907549) is a gas welder/generator with a 23.5 HP Kohler CH730 V-twin, 12-gallon tank and electric fuel pump.
- Brand: Miller
- Model: Trailblazer 302 Air Pak with GFCI and Electric Fuel Pump
- MPN: 907549
- Engine: Kohler CH730, V-Twin Gasoline Engine
- Engine Power: 23.5 HP @ 3,600 RPM
Dependablepower →
COMPLETE PRODUCT INFORMATION
Full Product Description
The Miller Trailblazer 302 Air Pak (907549) is a gas welder/generator with a 23.5 HP Kohler CH730 V-twin, 12-gallon tank and electric fuel pump. It welds 20-300A DC (100% at 300A), has a rotary screw compressor giving 26 CFM at 100 PSI, and 13,000W peak / 11,000W continuous with GFCI outlets; 59.5 x 20 x 34.25 inches, about 771 lb.
Specifications
- Brand: Miller
- Part / Model Number: Trailblazer 302 Air Pak with GFCI and Electric Fuel Pump
- Engine: Kohler CH730, V-Twin Gasoline Engine
- Engine Power: 23.5 HP @ 3,600 RPM
- Fuel Type: Gasoline
- Fuel Tank Capacity: 12 gallons (45.4 liters)
- Welding Output: 20 – 300 Amps (DC)
- Duty Cycle: 100% at 300 Amps
- Compressor: Ingersoll Rand Rotary Screw Air Compressor
- Air Output: 26 CFM at 100 PSI
- Generator Output: 13,000W Peak / 11,000W Continuous
- Receptacles: GFCI-protected 120V/240V outlets
- Electric Fuel Pump: Yes
- Noise Level: Approx. 76 dB under load @ 23 ft
- Dimensions: 59.5 in L × 20 in W × 34.25 in H
- Weight: Approx. 771 lbs (350 kg)
Technical Specifications
Product data| Product | Miller Trailblazer 302 Air Pak Kohler Welder/Generator – GFCI, Electric Fuel Pump |
|---|---|
| SKU | 907549 |
| Brand | Miller |
| Model | Trailblazer 302 Air Pak with GFCI and Electric Fuel Pump |
| MPN | 907549 |
| Engine | Kohler CH730, V-Twin Gasoline Engine |
| Engine Power | 23.5 HP @ 3,600 RPM |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 12 gallons (45.4 liters) |
| Welding Output | 20 – 300 Amps (DC) |
| Duty Cycle | 100% at 300 Amps |
| Welding Processes | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Air Carbon Arc Gouging (up to 3/16″) |
| Compressor | Ingersoll Rand Rotary Screw Air Compressor |
| Air Output | 26 CFM at 100 PSI |
| Generator Output | 13,000W Peak / 11,000W Continuous |
| Receptacles | GFCI-protected 120V/240V outlets |
| Electric Fuel Pump | Yes |
| Noise Level | Approx. 76 dB under load @ 23 ft |
| Dimensions | 59.5 in L × 20 in W × 34.25 in H |
| Weight | Approx. 771 lbs (350 kg) |
| GTIN | 715959365296 |
| Google Product Category | 2920 (Welding Machines) |
| Part Number | 907549 |
Engineered forreal-world performance907549
DELIVERY & AFTER-SALES INFORMATION
Shipping & Returns
Important information for this product before and after purchase.Heavy or oversized equipment delivery is coordinated according to the product and destination address.
Timing and applicable delivery arrangements are confirmed during checkout or by Kayros Tool support.
Contact Kayros Tool before returning an item so eligibility, product condition, and return instructions can be confirmed.
Overview
The Miller Trailblazer 302 Air Pak (907549) is a gas welder/generator with a 23.5 HP Kohler CH730 V-twin, 12-gallon tank and electric fuel pump. It welds 20-300A DC (100% at 300A), has a rotary screw compressor giving 26 CFM at 100 PSI, and 13,000W peak / 11,000W continuous with GFCI outlets; 59.5 x 20 x 34.25 inches, about 771 lb.
Specifications
- Brand: Miller
- Part / Model Number: Trailblazer 302 Air Pak with GFCI and Electric Fuel Pump
- Engine: Kohler CH730, V-Twin Gasoline Engine
- Engine Power: 23.5 HP @ 3,600 RPM
- Fuel Type: Gasoline
- Fuel Tank Capacity: 12 gallons (45.4 liters)
- Welding Output: 20 – 300 Amps (DC)
- Duty Cycle: 100% at 300 Amps
- Compressor: Ingersoll Rand Rotary Screw Air Compressor
- Air Output: 26 CFM at 100 PSI
- Generator Output: 13,000W Peak / 11,000W Continuous
- Receptacles: GFCI-protected 120V/240V outlets
- Electric Fuel Pump: Yes
- Noise Level: Approx. 76 dB under load @ 23 ft
- Dimensions: 59.5 in L × 20 in W × 34.25 in H
- Weight: Approx. 771 lbs (350 kg)
Specifications
Brand: Miller
Model: Trailblazer 302 Air Pak with GFCI and Electric Fuel Pump
MPN: 907549
Engine: Kohler CH730, V-Twin Gasoline Engine
Engine Power: 23.5 HP @ 3,600 RPM
Fuel Type: Gasoline
Fuel Tank Capacity: 12 gallons (45.4 liters)
Welding Output: 20 – 300 Amps (DC)
Duty Cycle: 100% at 300 Amps
Welding Processes: Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Air Carbon Arc Gouging (up to 3/16″)
Compressor: Ingersoll Rand Rotary Screw Air Compressor
Air Output: 26 CFM at 100 PSI
Generator Output: 13,000W Peak / 11,000W Continuous
Receptacles: GFCI-protected 120V/240V outlets
Electric Fuel Pump: Yes
Noise Level: Approx. 76 dB under load @ 23 ft
Dimensions: 59.5 in L × 20 in W × 34.25 in H
Weight: Approx. 771 lbs (350 kg)
GTIN: 715959365296
Google Product Category: 2920 (Welding Machines)
Part Number: 907549
