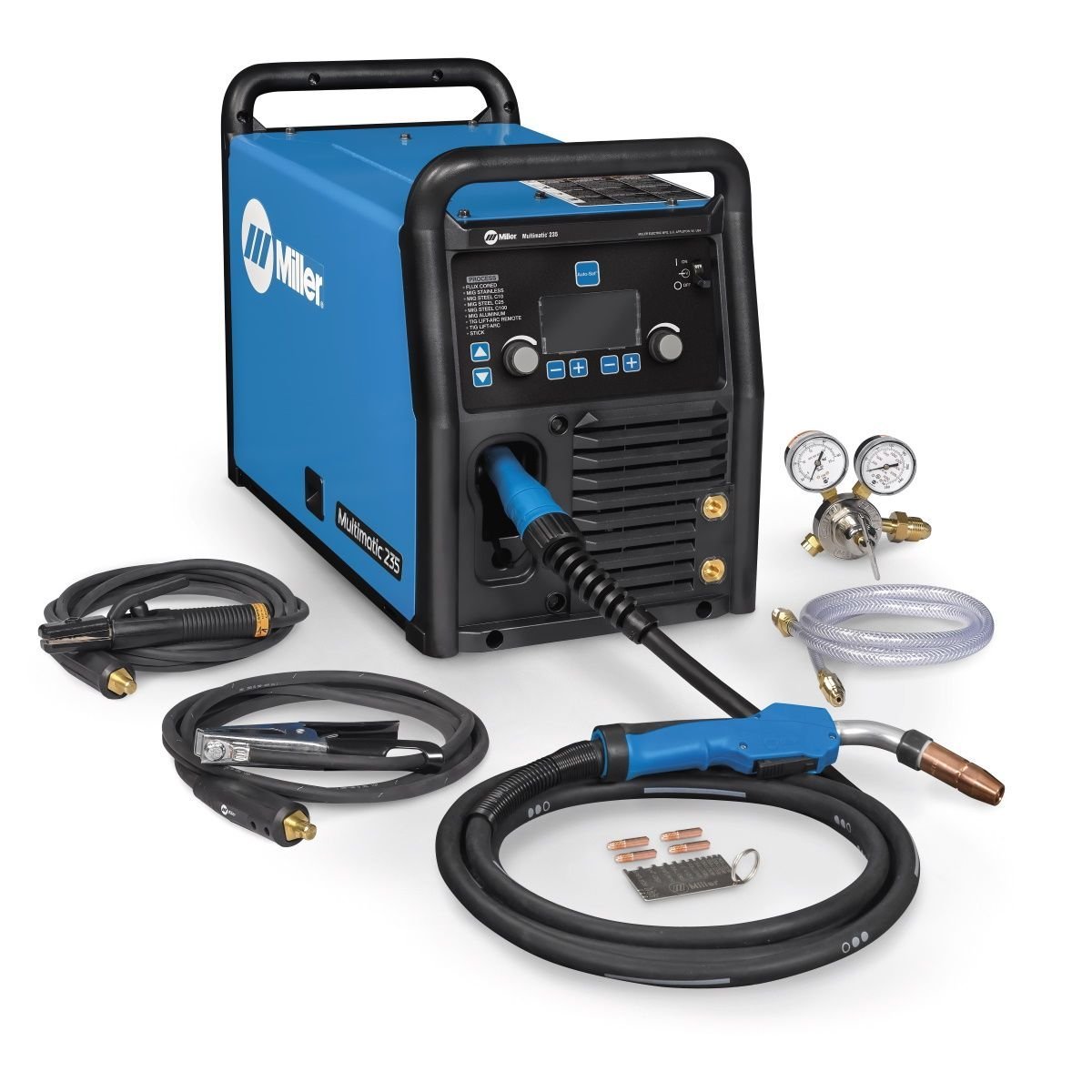

Miller Multimatic 235 Multi-Process Welder – MIG/TIG/Stick

The Miller Multimatic 235 (907780) is a MIG, flux-cored, stick and DC TIG welder on 240V single phase with 20-235A (200A at 60%). It has a color LCD with Auto-Set Elite, 50-700 IPM feed for 0.023-0.045-inch wire, spool gun capability, weighs 74.5 lb. and includes a MIG gun, work clamp, regulator and gas hose; the TIG kit is optional.

Specifications

• Brand: Miller
• Part / Model Number: 907780
• Type: Multiprocess Welder
• Processes: MIG, Flux-Cored, Stick, DC TIG
• Input Power: 240V, Single Phase
• Output Amperage: 20–235 Amps
• Duty Cycle: 200A @ 60%
• Display: Full-Color LCD
• Auto-Set Elite: Yes
• Wire Feed Speed: 50–700 IPM
• Wire Size Compatibility: 0.023 in – 0.045 in
• Spool Gun Compatible: Yes (Spoolmate 200)
• TIG Capable: Yes (with optional TIG kit)
• Weight: 74.5 lbs (33.8 kg)
• Dimensions: 13.5 in W × 21.5 in H × 25.5 in D
• Included: MIG gun, work clamp, regulator, gas hose

Brand: Miller

Model: Multimatic 235

MPN: 907780

Type: Multiprocess Welder

Processes: MIG, Flux-Cored, Stick, DC TIG

Input Power: 240V, Single Phase

Output Amperage: 20–235 Amps

Duty Cycle: 200A @ 60%

Display: Full-Color LCD

Auto-Set Elite: Yes

Wire Feed Speed: 50–700 IPM

Wire Size Compatibility: 0.023 in – 0.045 in

Spool Gun Compatible: Yes (Spoolmate 200)

TIG Capable: Yes (with optional TIG kit)

Weight: 74.5 lbs (33.8 kg)

Dimensions: 13.5 in W × 21.5 in H × 25.5 in D

Included: MIG gun, work clamp, regulator, gas hose

Warranty: Miller True Blue 3-Year Warranty

Applications: Light industrial, fabrication, repair

Google Product Category: 2920 (Welding Machines)

Part Number: 907780
