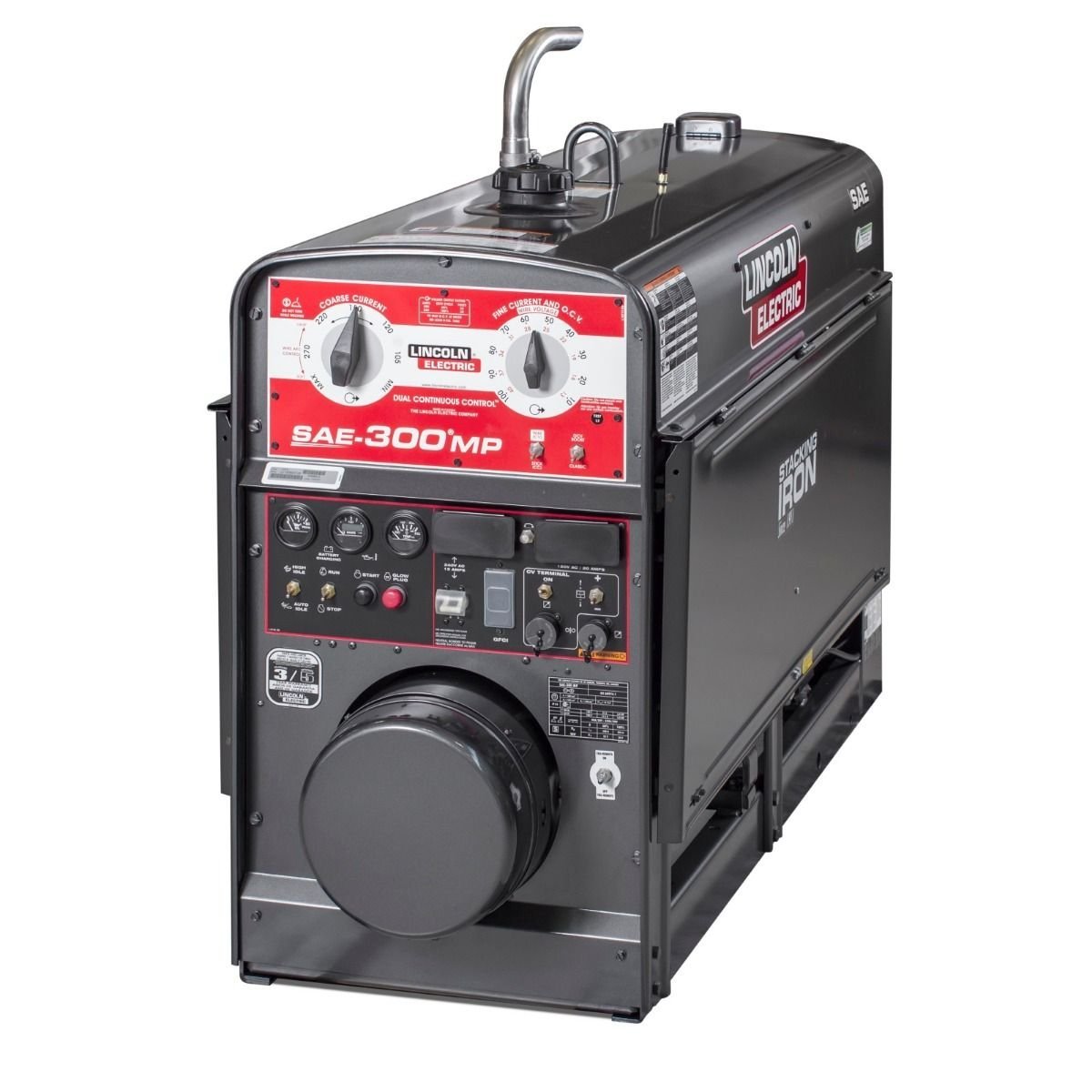

Lincoln Electric SAE-300 MP Kubota T4 Welder/Generator
The Lincoln SAE-300 MP Kubota T4 (K4090-1) is a diesel welder generator with a Kubota D1503-M Tier 4 Final 4-cylinder engine (24.8 HP at 1,800 RPM) and 17-gallon tank.
BUILT TO KEEP YOU MOVING
POWER WHEN
IT MATTERS MOST
The Lincoln SAE-300 MP Kubota T4 (K4090-1) is a diesel welder generator with a Kubota D1503-M Tier 4 Final 4-cylinder engine (24.8 HP at 1,800 RPM) and 17-gallon tank.
- Brand: Lincoln Electric
- Model: SAE-300 MP Kubota T4
- MPN: K4090-1
- Engine: Kubota D1503-M, Tier 4 Final, 4-Cylinder Diesel
- Engine Power: 24.8 HP @ 1,800 RPM
Dependablepower →
COMPLETE PRODUCT INFORMATION
Full Product Description
The Lincoln SAE-300 MP Kubota T4 (K4090-1) is a diesel welder generator with a Kubota D1503-M Tier 4 Final 4-cylinder engine (24.8 HP at 1,800 RPM) and 17-gallon tank. It welds 40-300A DC (100% at 250A), stick and CV, gives 3,000W at 120/240V, has stainless panels, a brushless alternator and operates -20 to 55 degrees C; 66 x 24.6 x 40 inches, about 1,585 lb.
Specifications
- Brand: Lincoln Electric
- Part / Model Number: SAE-300 MP Kubota T4
- Engine: Kubota D1503-M, Tier 4 Final, 4-Cylinder Diesel
- Engine Power: 24.8 HP @ 1,800 RPM
- Fuel Type: Diesel
- Fuel Tank Capacity: 17 gallons (64.3 liters)
- Welding Output: Up to 300 Amps DC
- Duty Cycle: 100% at 250 Amps
- Processes Supported: Stick (SMAW), CV (with optional module)
- Welding Range: 40 – 300 Amps
- Generator Output: 3,000 Watts Continuous @ 120/240V AC
- Enclosure: Stainless steel roof and side panels
- Alternator Type: Brushless, pure DC generator
- Operating Temperature: -20°C to +55°C (All-Climate)
- Dimensions: 66 in L × 24.6 in W × 40 in H
- Weight: Approx. 1,585 lbs (719 kg)
Technical Specifications
Product data| Product | Lincoln Electric SAE-300 MP Kubota T4 Welder/Generator |
|---|---|
| SKU | K4090-1 |
| Brand | Lincoln Electric |
| Model | SAE-300 MP Kubota T4 |
| MPN | K4090-1 |
| Engine | Kubota D1503-M, Tier 4 Final, 4-Cylinder Diesel |
| Engine Power | 24.8 HP @ 1,800 RPM |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 17 gallons (64.3 liters) |
| Welding Output | Up to 300 Amps DC |
| Duty Cycle | 100% at 250 Amps |
| Processes Supported | Stick (SMAW), CV (with optional module) |
| Welding Range | 40 – 300 Amps |
| Remote Capabilities | CrossLinc compatible (optional) |
| Generator Output | 3,000 Watts Continuous @ 120/240V AC |
| Enclosure | Stainless steel roof and side panels |
| Alternator Type | Brushless, pure DC generator |
| Operating Temperature | -20°C to +55°C (All-Climate) |
| Dimensions | 66 in L × 24.6 in W × 40 in H |
| Weight | Approx. 1,585 lbs (719 kg) |
| Noise Level | Approx. 76 dB @ 23 ft |
| GTIN | 015082681614 |
| Part Number | K4090-1 |
Engineered forreal-world performanceK4090-1
DELIVERY & AFTER-SALES INFORMATION
Shipping & Returns
Important information for this product before and after purchase.Heavy or oversized equipment delivery is coordinated according to the product and destination address.
Timing and applicable delivery arrangements are confirmed during checkout or by Kayros Tool support.
Contact Kayros Tool before returning an item so eligibility, product condition, and return instructions can be confirmed.
Overview
The Lincoln SAE-300 MP Kubota T4 (K4090-1) is a diesel welder generator with a Kubota D1503-M Tier 4 Final 4-cylinder engine (24.8 HP at 1,800 RPM) and 17-gallon tank. It welds 40-300A DC (100% at 250A), stick and CV, gives 3,000W at 120/240V, has stainless panels, a brushless alternator and operates -20 to 55 degrees C; 66 x 24.6 x 40 inches, about 1,585 lb.
Specifications
- Brand: Lincoln Electric
- Part / Model Number: SAE-300 MP Kubota T4
- Engine: Kubota D1503-M, Tier 4 Final, 4-Cylinder Diesel
- Engine Power: 24.8 HP @ 1,800 RPM
- Fuel Type: Diesel
- Fuel Tank Capacity: 17 gallons (64.3 liters)
- Welding Output: Up to 300 Amps DC
- Duty Cycle: 100% at 250 Amps
- Processes Supported: Stick (SMAW), CV (with optional module)
- Welding Range: 40 – 300 Amps
- Generator Output: 3,000 Watts Continuous @ 120/240V AC
- Enclosure: Stainless steel roof and side panels
- Alternator Type: Brushless, pure DC generator
- Operating Temperature: -20°C to +55°C (All-Climate)
- Dimensions: 66 in L × 24.6 in W × 40 in H
- Weight: Approx. 1,585 lbs (719 kg)
Specifications
Brand: Lincoln Electric
Model: SAE-300 MP Kubota T4
MPN: K4090-1
Engine: Kubota D1503-M, Tier 4 Final, 4-Cylinder Diesel
Engine Power: 24.8 HP @ 1,800 RPM
Fuel Type: Diesel
Fuel Tank Capacity: 17 gallons (64.3 liters)
Welding Output: Up to 300 Amps DC
Duty Cycle: 100% at 250 Amps
Processes Supported: Stick (SMAW), CV (with optional module)
Welding Range: 40 – 300 Amps
Remote Capabilities: CrossLinc compatible (optional)
Generator Output: 3,000 Watts Continuous @ 120/240V AC
Enclosure: Stainless steel roof and side panels
Alternator Type: Brushless, pure DC generator
Operating Temperature: -20°C to +55°C (All-Climate)
Dimensions: 66 in L × 24.6 in W × 40 in H
Weight: Approx. 1,585 lbs (719 kg)
Noise Level: Approx. 76 dB @ 23 ft
GTIN: 015082681614
Part Number: K4090-1
