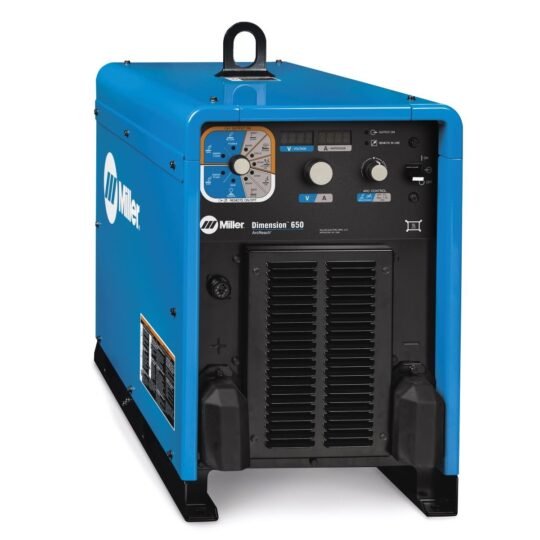

Miller Dimension 650 Multi-Process Welder – ArcReach, 575V
The Miller Dimension 650 ArcReach (907809) is a multi-process welder for stick, MIG, flux-cored and DC TIG on 575V 3-phase with 15-815A (650A at 44V, 100%). It has fan-on-demand and True Voltage meters; about 172 lb.
CONTROL FOR EVERY BEAD
PRECISION WHERE
THE WORK DEMANDS IT
The Miller Dimension 650 ArcReach (907809) is a multi-process welder for stick, MIG, flux-cored and DC TIG on 575V 3-phase with 15-815A (650A at 44V, 100%). It has fan-on-demand and True Voltage meters; about 172 lb.
- Voltage: 575V
- Brand: Miller
- Model: Dimension 650 Multiprocess Welder with ArcReach
- MPN: 907809
- Voltage Input: 575V, 3-Phase, 60 Hz
Dependablepower →
COMPLETE PRODUCT INFORMATION
Full Product Description
The Miller Dimension 650 ArcReach (907809) is a multi-process welder for stick, MIG, flux-cored and DC TIG on 575V 3-phase with 15-815A (650A at 44V, 100%). It has fan-on-demand and True Voltage meters; about 172 lb.
Specifications
- Brand: Miller
- Part / Model Number: Dimension 650 Multiprocess Welder with ArcReach
- Voltage: 575V
- Voltage Input: 575V, 3-Phase, 60 Hz
- Welding Output Range: 15 – 815 Amps
- Rated Output: 650 Amps @ 44V, 100% Duty Cycle
- Welding Processes: Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), DC TIG (GTAW)
- ArcReach Compatibility: Yes – remote parameter adjustment with ArcReach accessories
- Cooling System: Fan-On-Demand, Wind Tunnel Technology
- Digital Display: True Voltage Technology for consistent arc performance
- Net Weight: Approx. 172 lbs (78 kg)
- Dimensions: 27.75 in L × 17.25 in W × 22.75 in H
- GTIN: 715959686012
Technical Specifications
Product data| Product | Miller Dimension 650 Multi-Process Welder – ArcReach, 575V |
|---|---|
| SKU | 907809 |
| Voltage | 575V |
| Brand | Miller |
| Model | Dimension 650 Multiprocess Welder with ArcReach |
| MPN | 907809 |
| Voltage Input | 575V, 3-Phase, 60 Hz |
| Welding Output Range | 15 – 815 Amps |
| Rated Output | 650 Amps @ 44V, 100% Duty Cycle |
| Welding Processes | Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), DC TIG (GTAW) |
| ArcReach Compatibility | Yes – remote parameter adjustment with ArcReach accessories |
| Cooling System | Fan-On-Demand, Wind Tunnel Technology |
| Digital Display | True Voltage Technology for consistent arc performance |
| Net Weight | Approx. 172 lbs (78 kg) |
| Dimensions | 27.75 in L × 17.25 in W × 22.75 in H |
| GTIN | 715959686012 |
| Google Product Category | 2920 (Welding Machines) |
| Warranty | 3-Year Miller True Blue Warranty |
| Part Number | 907809 |
