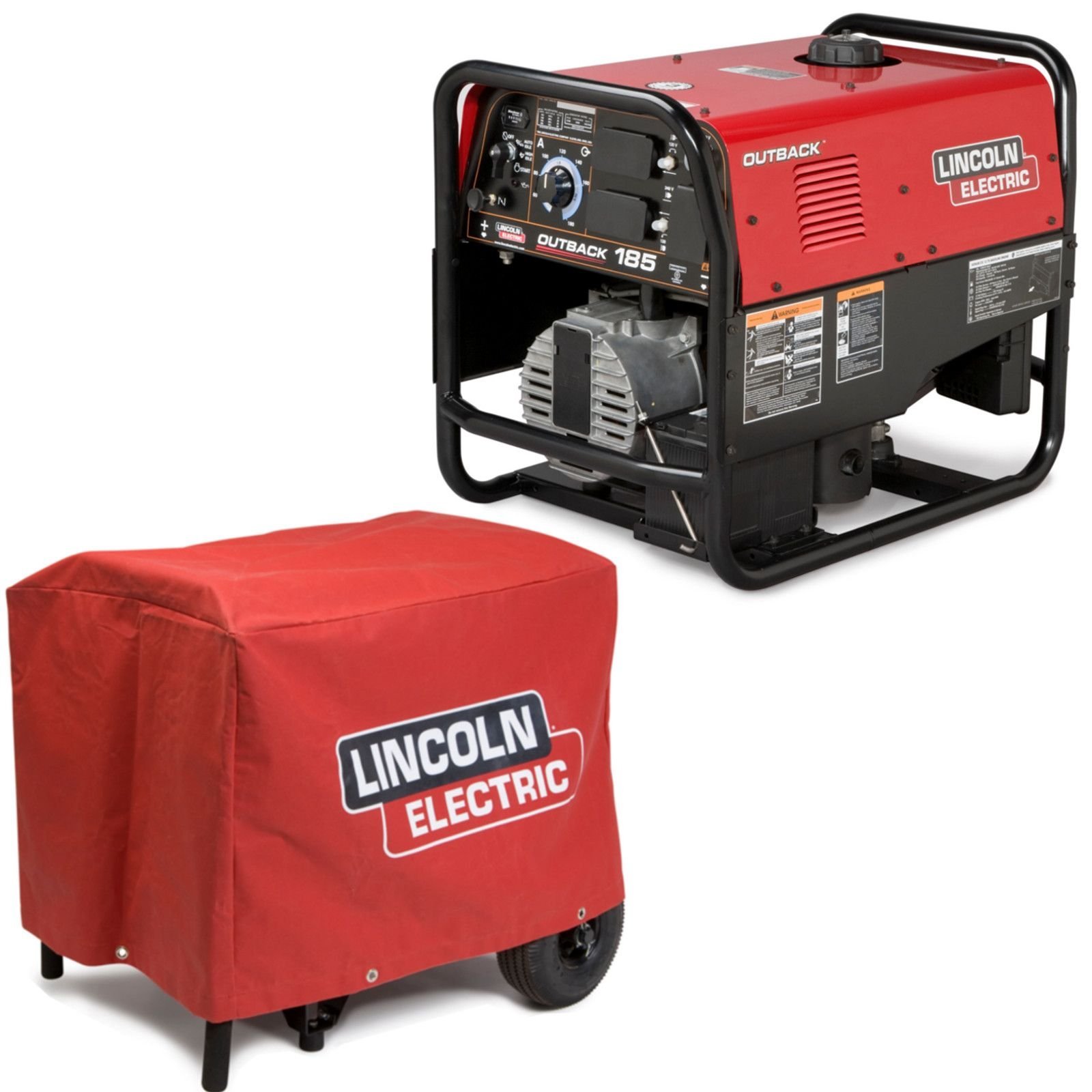

Lincoln Electric Outback 185 Engine-Driven Welder/Generator – Cover Package
The Lincoln Outback 185 (K2706-2) is a gas welder generator with a 12.1 HP Kohler CH395 and 6.8-gallon tank. It does DC stick and scratch-start TIG up to 185A (130A at 20%), provides 5,700W peak / 5,200W continuous with two 120V and one 240V outlets, and includes a K2804-1 cover; about 295 lb.
BUILT TO KEEP YOU MOVING
POWER WHEN
IT MATTERS MOST
The Lincoln Outback 185 (K2706-2) is a gas welder generator with a 12.1 HP Kohler CH395 and 6.8-gallon tank. It does DC stick and scratch-start TIG up to 185A (130A at 20%), provides 5,700W peak / 5,200W continuous with two 120V and one 240V outlets, and includes a K2804-1 cover; about 295 lb.
- Brand: Lincoln Electric
- Model: Outback 185
- MPN: K2706-2 (Welder), K2804-1 (Cover)
- Engine: Kohler CH395, OHV Gasoline
- Engine Power: 12.1 HP @ 3,600 RPM
Dependablepower →
COMPLETE PRODUCT INFORMATION
Full Product Description
The Lincoln Outback 185 (K2706-2) is a gas welder generator with a 12.1 HP Kohler CH395 and 6.8-gallon tank. It does DC stick and scratch-start TIG up to 185A (130A at 20%), provides 5,700W peak / 5,200W continuous with two 120V and one 240V outlets, and includes a K2804-1 cover; about 295 lb.
Specifications
- Brand: Lincoln Electric
- Part / Model Number: Outback 185
- Engine: Kohler CH395, OHV Gasoline
- Engine Power: 12.1 HP @ 3,600 RPM
- Fuel Type: Gasoline
- Fuel Tank Capacity: 6.8 gallons (25.7 liters)
- Welding Output: DC Stick / DC TIG, 185A Max @ 25V
- Welding Duty Cycle: 130A @ 25V, 20% Duty Cycle
- Generator Output: 5,700 Watts Peak / 5,200 Watts Continuous
- Receptacles: (2) 120V 20A Duplex, (1) 240V 20A
- Processes: Stick, DC TIG (Scratch Start)
- Included: Weather-Resistant Cover (K2804-1)
- Dimensions: 31.5 in L × 21.5 in W × 24.2 in H
- Weight: Approx. 295 lbs (133.8 kg)
- Noise Level: Approx. 98 dB @ rated output
- GTIN: 015082582263
Technical Specifications
Product data| Product | Lincoln Electric Outback 185 Engine-Driven Welder/Generator – Cover Package |
|---|---|
| SKU | K2706-2 |
| Brand | Lincoln Electric |
| Model | Outback 185 |
| MPN | K2706-2 (Welder), K2804-1 (Cover) |
| Engine | Kohler CH395, OHV Gasoline |
| Engine Power | 12.1 HP @ 3,600 RPM |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 6.8 gallons (25.7 liters) |
| Welding Output | DC Stick / DC TIG, 185A Max @ 25V |
| Welding Duty Cycle | 130A @ 25V, 20% Duty Cycle |
| Generator Output | 5,700 Watts Peak / 5,200 Watts Continuous |
| Receptacles | (2) 120V 20A Duplex, (1) 240V 20A |
| Processes | Stick, DC TIG (Scratch Start) |
| Included | Weather-Resistant Cover (K2804-1) |
| Dimensions | 31.5 in L × 21.5 in W × 24.2 in H |
| Weight | Approx. 295 lbs (133.8 kg) |
| Noise Level | Approx. 98 dB @ rated output |
| GTIN | 015082582263 |
| Google Product Category | 2920 (Welding Machines) |
| Warranty | 3-Year Lincoln Electric Limited Warranty |
| Part Number | K2706-2 |
Engineered forreal-world performanceK2706-2
DELIVERY & AFTER-SALES INFORMATION
Shipping & Returns
Important information for this product before and after purchase.Heavy or oversized equipment delivery is coordinated according to the product and destination address.
Timing and applicable delivery arrangements are confirmed during checkout or by Kayros Tool support.
Contact Kayros Tool before returning an item so eligibility, product condition, and return instructions can be confirmed.
Overview
The Lincoln Outback 185 (K2706-2) is a gas welder generator with a 12.1 HP Kohler CH395 and 6.8-gallon tank. It does DC stick and scratch-start TIG up to 185A (130A at 20%), provides 5,700W peak / 5,200W continuous with two 120V and one 240V outlets, and includes a K2804-1 cover; about 295 lb.
Specifications
- Brand: Lincoln Electric
- Part / Model Number: Outback 185
- Engine: Kohler CH395, OHV Gasoline
- Engine Power: 12.1 HP @ 3,600 RPM
- Fuel Type: Gasoline
- Fuel Tank Capacity: 6.8 gallons (25.7 liters)
- Welding Output: DC Stick / DC TIG, 185A Max @ 25V
- Welding Duty Cycle: 130A @ 25V, 20% Duty Cycle
- Generator Output: 5,700 Watts Peak / 5,200 Watts Continuous
- Receptacles: (2) 120V 20A Duplex, (1) 240V 20A
- Processes: Stick, DC TIG (Scratch Start)
- Included: Weather-Resistant Cover (K2804-1)
- Dimensions: 31.5 in L × 21.5 in W × 24.2 in H
- Weight: Approx. 295 lbs (133.8 kg)
- Noise Level: Approx. 98 dB @ rated output
- GTIN: 015082582263
Specifications
Brand: Lincoln Electric
Model: Outback 185
MPN: K2706-2 (Welder), K2804-1 (Cover)
Engine: Kohler CH395, OHV Gasoline
Engine Power: 12.1 HP @ 3,600 RPM
Fuel Type: Gasoline
Fuel Tank Capacity: 6.8 gallons (25.7 liters)
Welding Output: DC Stick / DC TIG, 185A Max @ 25V
Welding Duty Cycle: 130A @ 25V, 20% Duty Cycle
Generator Output: 5,700 Watts Peak / 5,200 Watts Continuous
Receptacles: (2) 120V 20A Duplex, (1) 240V 20A
Processes: Stick, DC TIG (Scratch Start)
Included: Weather-Resistant Cover (K2804-1)
Dimensions: 31.5 in L × 21.5 in W × 24.2 in H
Weight: Approx. 295 lbs (133.8 kg)
Noise Level: Approx. 98 dB @ rated output
GTIN: 015082582263
Google Product Category: 2920 (Welding Machines)
Warranty: 3-Year Lincoln Electric Limited Warranty
Part Number: K2706-2
Shipping & Returns
NST Cargo coordination: Heavy or oversized equipment delivery is coordinated according to the product and destination address.
Delivery estimate: Timing and applicable arrangements are confirmed during checkout or by Kayros Tool support.
Returns: Contact Kayros Tool before returning an item so eligibility, condition, and instructions can be confirmed.
