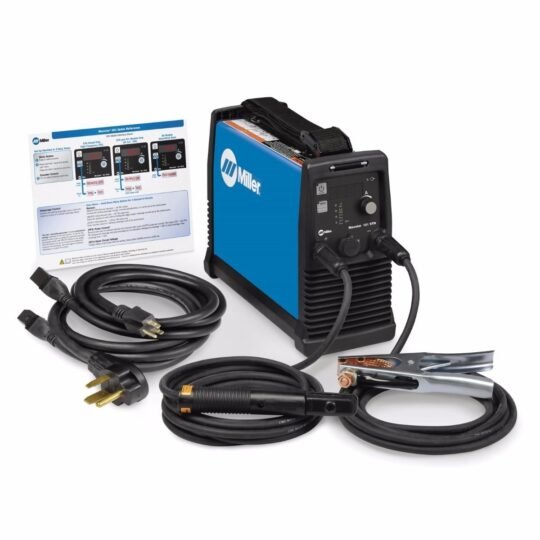

Miller Maxstar 161 STH 907711 Portable DC TIG/Stick Welder – HF Start
The Miller Maxstar 161 STH (907711) is a portable inverter DC TIG and stick welder on 120/240V with 10-160A TIG and 20-160A stick (20-85A on 120V), rated 160A at 60% TIG on 240V. It has HF, Lift-Arc and scratch start, pulse from 0.5 to 150 PPS, fan-on-demand and a shoulder strap; 13.2 lb.
CONTROL FOR EVERY BEAD
PRECISION WHERE
THE WORK DEMANDS IT
The Miller Maxstar 161 STH (907711) is a portable inverter DC TIG and stick welder on 120/240V with 10-160A TIG and 20-160A stick (20-85A on 120V), rated 160A at 60% TIG on 240V. It has HF, Lift-Arc and scratch start, pulse from 0.5 to 150 PPS, fan-on-demand and a shoulder strap; 13.2 lb.
- Brand: Miller
- Model: Maxstar 161 STH
- MPN: 907711
- Processes: TIG (GTAW), Stick (SMAW)
- Input Voltage: 120/240V, 50/60Hz
Dependablepower →
COMPLETE PRODUCT INFORMATION
Full Product Description
The Miller Maxstar 161 STH (907711) is a portable inverter DC TIG and stick welder on 120/240V with 10-160A TIG and 20-160A stick (20-85A on 120V), rated 160A at 60% TIG on 240V. It has HF, Lift-Arc and scratch start, pulse from 0.5 to 150 PPS, fan-on-demand and a shoulder strap; 13.2 lb.
Specifications
- Brand: Miller
- Part / Model Number: 907711
- Processes: TIG (GTAW), Stick (SMAW)
- Input Voltage: 120/240V, 50/60Hz
- Amperage Range: TIG: 10–160A, Stick: 20–85A (120V), 20–160A (240V)
- Rated Output: 160A at 60% Duty Cycle (TIG @ 240V)
- Start Method: High Frequency (HF), Lift-Arc, Scratch Start
- Pulse Control: Built-in (0.5 to 150 pulses per second)
- Technology: Inverter-based, DC only
- Weight: 13.2 lbs (6 kg)
- Dimensions: 13.25 x 5.625 x 9 in (337 x 143 x 229 mm)
- Duty Cycle: 60% at 160A (TIG)
- Portability: Shoulder strap included
- Application: Maintenance, Light Fabrication, HVAC, Field Repair
- Power Source Type: DC Inverter
- Cooling Method: Fan-On-Demand
Technical Specifications
Product data| Product | Miller Maxstar 161 STH 907711 Portable DC TIG/Stick Welder – HF Start |
|---|---|
| SKU | 907711 |
| Brand | Miller |
| Model | Maxstar 161 STH |
| MPN | 907711 |
| Processes | TIG (GTAW), Stick (SMAW) |
| Input Voltage | 120/240V, 50/60Hz |
| Amperage Range | TIG: 10–160A, Stick: 20–85A (120V), 20–160A (240V) |
| Rated Output | 160A at 60% Duty Cycle (TIG @ 240V) |
| Start Method | High Frequency (HF), Lift-Arc, Scratch Start |
| Pulse Control | Built-in (0.5 to 150 pulses per second) |
| Technology | Inverter-based, DC only |
| Weight | 13.2 lbs (6 kg) |
| Dimensions | 13.25 x 5.625 x 9 in (337 x 143 x 229 mm) |
| Duty Cycle | 60% at 160A (TIG) |
| Portability | Shoulder strap included |
| Application | Maintenance, Light Fabrication, HVAC, Field Repair |
| Power Source Type | DC Inverter |
| Cooling Method | Fan-On-Demand |
| Google Product Category | 2920 (Welding Machines) |
| Condition | New |
| Warranty | 3-Year Manufacturer Warranty |
| Part Number | 907711 |
Engineered forreal-world performance907711
DELIVERY & AFTER-SALES INFORMATION
Shipping & Returns
Important information for this product before and after purchase.Heavy or oversized equipment delivery is coordinated according to the product and destination address.
Timing and applicable delivery arrangements are confirmed during checkout or by Kayros Tool support.
Contact Kayros Tool before returning an item so eligibility, product condition, and return instructions can be confirmed.
Overview
The Miller Maxstar 161 STH (907711) is a portable inverter DC TIG and stick welder on 120/240V with 10-160A TIG and 20-160A stick (20-85A on 120V), rated 160A at 60% TIG on 240V. It has HF, Lift-Arc and scratch start, pulse from 0.5 to 150 PPS, fan-on-demand and a shoulder strap; 13.2 lb.
Specifications
- Brand: Miller
- Part / Model Number: 907711
- Processes: TIG (GTAW), Stick (SMAW)
- Input Voltage: 120/240V, 50/60Hz
- Amperage Range: TIG: 10–160A, Stick: 20–85A (120V), 20–160A (240V)
- Rated Output: 160A at 60% Duty Cycle (TIG @ 240V)
- Start Method: High Frequency (HF), Lift-Arc, Scratch Start
- Pulse Control: Built-in (0.5 to 150 pulses per second)
- Technology: Inverter-based, DC only
- Weight: 13.2 lbs (6 kg)
- Dimensions: 13.25 x 5.625 x 9 in (337 x 143 x 229 mm)
- Duty Cycle: 60% at 160A (TIG)
- Portability: Shoulder strap included
- Application: Maintenance, Light Fabrication, HVAC, Field Repair
- Power Source Type: DC Inverter
- Cooling Method: Fan-On-Demand
Specifications
Brand: Miller
Model: Maxstar 161 STH
MPN: 907711
Processes: TIG (GTAW), Stick (SMAW)
Input Voltage: 120/240V, 50/60Hz
Amperage Range: TIG: 10–160A, Stick: 20–85A (120V), 20–160A (240V)
Rated Output: 160A at 60% Duty Cycle (TIG @ 240V)
Start Method: High Frequency (HF), Lift-Arc, Scratch Start
Pulse Control: Built-in (0.5 to 150 pulses per second)
Technology: Inverter-based, DC only
Weight: 13.2 lbs (6 kg)
Dimensions: 13.25 x 5.625 x 9 in (337 x 143 x 229 mm)
Duty Cycle: 60% at 160A (TIG)
Portability: Shoulder strap included
Application: Maintenance, Light Fabrication, HVAC, Field Repair
Power Source Type: DC Inverter
Cooling Method: Fan-On-Demand
Google Product Category: 2920 (Welding Machines)
Condition: New
Warranty: 3-Year Manufacturer Warranty
Part Number: 907711
