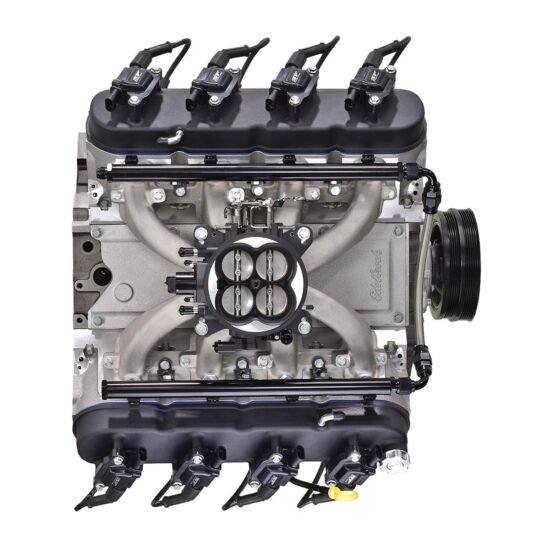

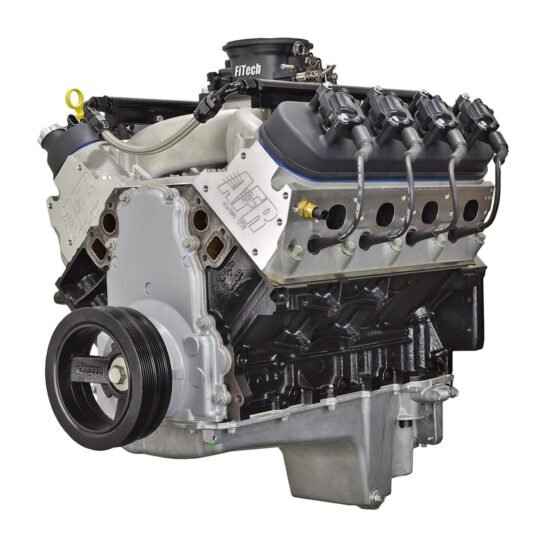

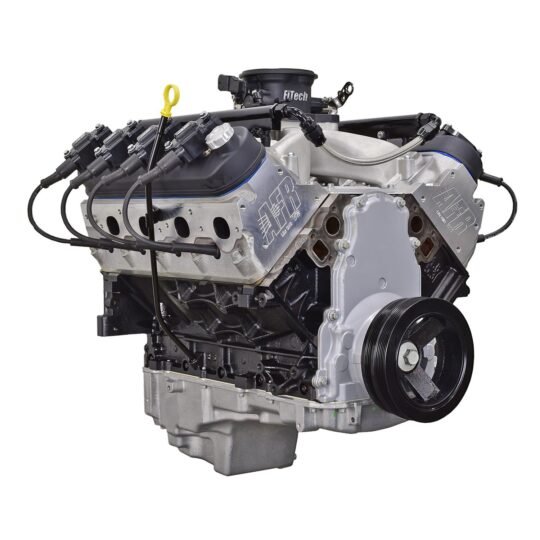

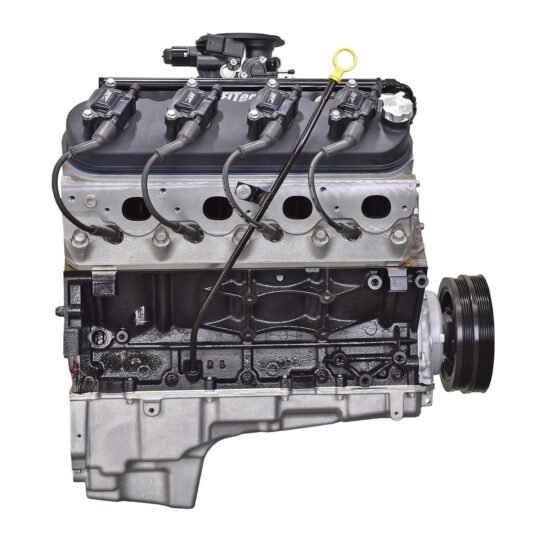

ATK HP116C-EFI LM7 5.3L EFI Crate Engine – AFR Heads, 500 HP

The ATK HP116C-EFI is a remanufactured GM LM7 5.3L-based crate engine rated 500 HP, with AFR aluminum heads, 10.1:1 compression, hydraulic roller cam, 24X reluctor, internal balance and FiTech EFI. Includes heads, balancer, intake, oil pan, plug wires, plugs, throttle body, timing cover and valve covers; air cleaner, carburetor, computer, distributor, flexplate, flywheel, supercharger, water pump and harness are not included.

Specifications

• Brand: ATK High Performance Engines
• Part / Model Number: HP116C-EFI
• Actual Engine Displacement: 5.7L/347
• Advertised Compression Ratio: 10.1:1
• Assembled: Yes
• Cam Style: Hydraulic roller
• Crate Engine Cylinder Head Material: Aluminum
• Crate Engine Family: Chevy LS
• Engine Balance: Internal
• Engine Block Material: Cast iron
• Intake Manifold Style: Fuel Injection
• Notes: 24X reluctor wheel.
• Part Type: Crate Engines
• Product Line: ATK High Performance GM LM7 5.3L with AFR Heads 500 HP Crate Engines with EFI
• Rear Main Seal Style: 1-piece

Included: Cylinder Heads, Harmonic Balancer, Intake Manifold, Oil Pan, Spark Plug Wires, Spark Plugs, Throttle Body, Timing Cover, Valve Covers.

Actual Engine Displacement: 5.7L/347

Advertised Compression Ratio: 10.1:1

Air Cleaner Included: No

Assembled: Yes

Brand: ATK High Performance Engines

Cam Style: Hydraulic roller, OE roller

Carburetor Included: No

Computer Included: No

Crate Engine Cylinder Head Material: Aluminum

Crate Engine Family: Chevy LS

Cylinder Heads Included: Yes

Distributor Included: No

Engine Balance: Internal

Engine Block Material: Cast iron

Flexplate Included: No

Flywheel Included: No

Harmonic Balancer Included: Yes

Intake Manifold Included: Yes

Intake Manifold Style: Fuel Injection

Manufacturer's Part Number: HP116C-EFI

Notes: 24X reluctor wheel.

Oil Pan Included: Yes

Part Type: Crate Engines

Product Line: ATK High Performance GM LM7 5.3L with AFR Heads 500 HP Crate Engines with EFI

Quantity: Sold individually.

Rear Main Seal Style: 1-piece

Remanufactured: Yes

Spark Plug Wires Included: Yes

Spark Plugs Included: Yes

Supercharger Included: No

Throttle Body Included: Yes

Timing Cover Included: Yes

UPC: 00653517731570

Valve Covers Included: Yes

Water Pump Included: No

Wiring Harness Included: No
