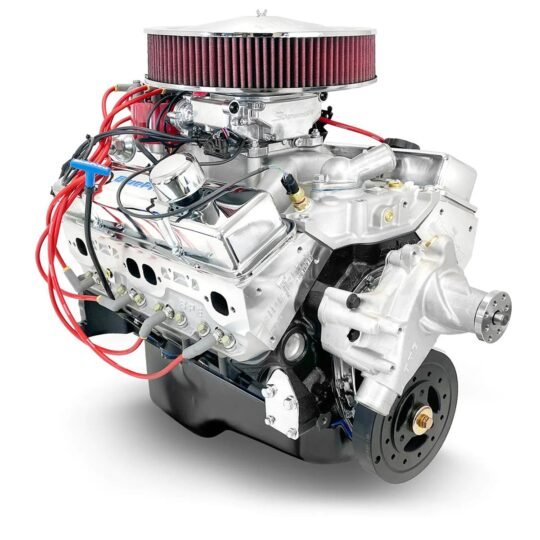

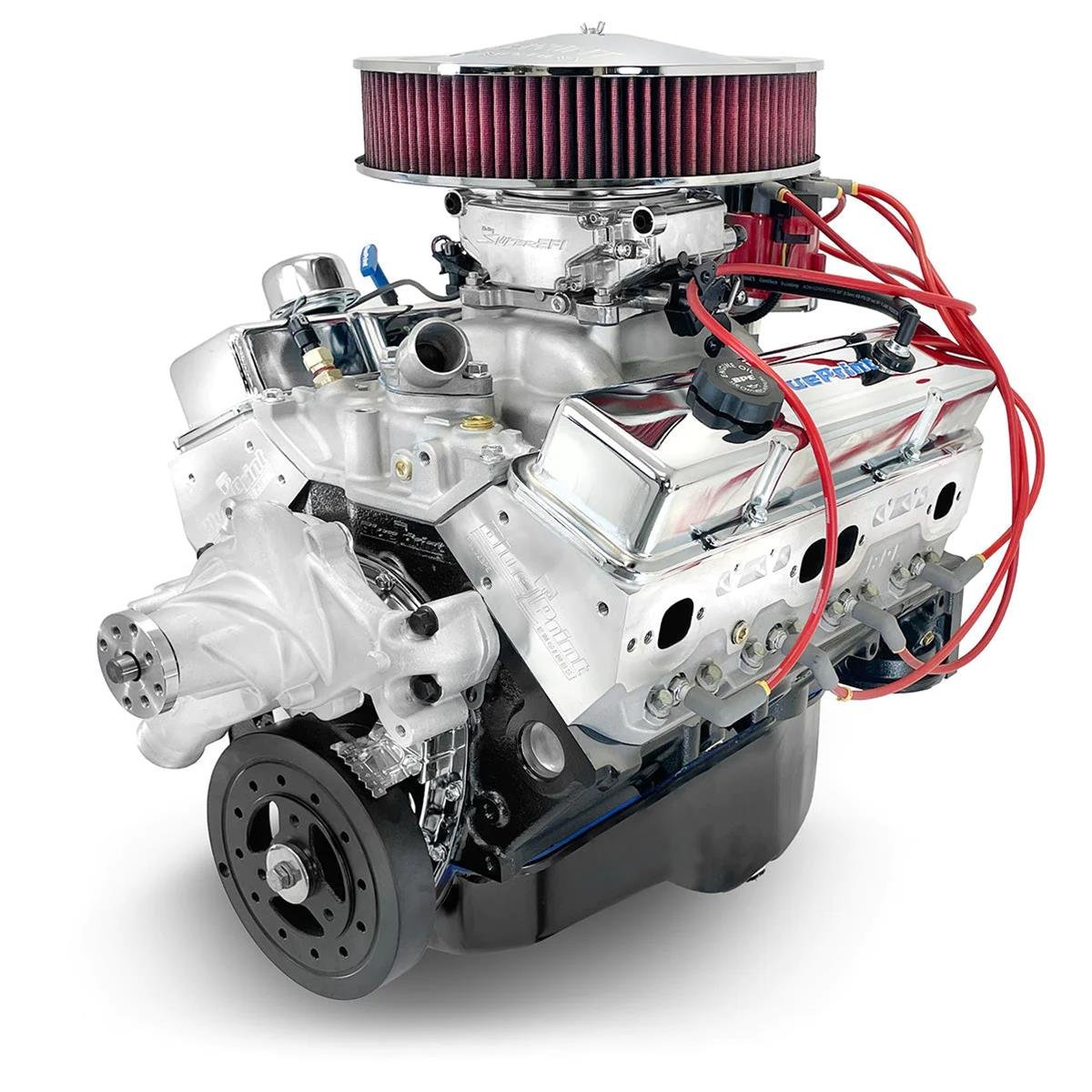

BluePrint Engines BP3505CTFD GM 350 Dressed Long Block Crate Engine – 390 HP, Fuel Injected

The BluePrint BP3505CTFD is a 350 (5.7L) Chevy small block dressed long block with fuel injection, rated 390 HP and 410 lb.-ft., with 9.2:1 compression, new iron block, aluminum heads, hydraulic roller cam and 2,000-2,400 RPM stall. Includes air cleaner, computer, heads, distributor, balancer, intake, oil pan, plug wires, plugs, throttle body, timing cover, valve covers and water pump; carburetor, flexplate, flywheel, supercharger and harness are not included.

Specifications

• Brand: BluePrint Engines
• Part / Model Number: BP3505CTFD
• Actual Engine Displacement: 5.7L/350
• Advertised Compression Ratio: 9.2:1
• Assembled: Yes
• Cam Style: Hydraulic roller
• Crate Engine Cylinder Head Material: Aluminum
• Crate Engine Family: Chevy Small Block
• Engine Balance: Internal/External
• Engine Block Material: Cast iron
• Intake Manifold Style: Carbureted
• Part Type: Crate Engines
• Rear Main Seal Style: 1-piece
• Remanufactured: No
• Stall Speed Rating RPM Range: 2,000-2,400

Included: Air Cleaner, Computer, Cylinder Heads, Distributor, Harmonic Balancer, Intake Manifold, Oil Pan, Spark Plug Wires, Spark Plugs, Throttle Body, Timing Cover, Valve Covers, Water Pump.

Actual Engine Displacement: 5.7L/350

Advertised Compression Ratio: 9.2:1

Air Cleaner Included: Yes

Assembled: Yes

Brand: BluePrint Engines

Cam Style: Hydraulic roller, OE roller

Carburetor Included: No

Computer Included: Yes

Crate Engine Cylinder Head Material: Aluminum

Crate Engine Family: Chevy Small Block

Cylinder Heads Included: Yes

Distributor Included: Yes

Engine Balance: Internal/External

Engine Block Material: Cast iron

Flexplate Included: No

Flywheel Included: No

Harmonic Balancer Included: Yes

Intake Manifold Included: Yes

Intake Manifold Style: Carbureted

Manufacturer's Part Number: BP3505CTFD

Notes: Does not include fuel pump or lines. This engine is not designed, nor intended to be used in any marine applications. Designed for pre-1976 street vehicles or any off-road vehicle. Will not fit pre-1976 factory AC brackets that mount to intake. Engines installed in vehicles registered and normally operated outside of the United States carry no warranty.

Oil Pan Included: Yes

Part Type: Crate Engines

Product Line: BluePrint Engines GM 350 C.I.D. 390 HP Dressed Long Block Crate Engines with Fuel Injection

Quantity: Sold individually.

Rear Main Seal Style: 1-piece

Remanufactured: No

Spark Plug Wires Included: Yes

Spark Plugs Included: Yes

Special Attention: Due to supply chain challenges with this item Blueprint may substitute alternate finishes for the following components: Valve Covers, Timing Covers, Oil Pans, Plug Wires, Water Pumps, Block.

Stall Speed Rating RPM Range: 2,000-2,400

Supercharger Included: No

Throttle Body Included: Yes

Timing Cover Included: Yes

UPC: 00887753841223

Valve Covers Included: Yes

Water Pump Included: Yes

Water Pump Style: Long

Wiring Harness Included: No
