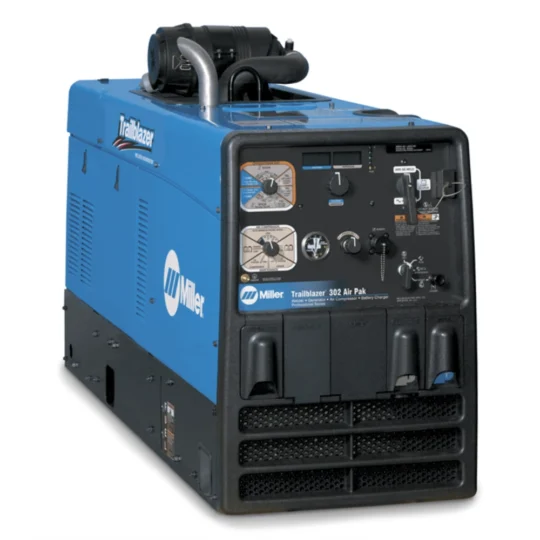

Miller Trailblazer 302 Kohler Air Pak Welder/Generator
The Miller Trailblazer 302 Air Pak (907549001) is a gas welder/generator with a 23 HP Kohler twin and 12-gallon tank. It welds 20-300A (300A at 32V, 100%) in stick, MIG, flux-cored and DC TIG, has a rotary screw compressor giving 26 CFM at 100 PSI (80-160 PSI range), and 13,000W peak / 10,500W continuous; 771 lb.
BUILT TO KEEP YOU MOVING
POWER WHEN
IT MATTERS MOST
The Miller Trailblazer 302 Air Pak (907549001) is a gas welder/generator with a 23 HP Kohler twin and 12-gallon tank. It welds 20-300A (300A at 32V, 100%) in stick, MIG, flux-cored and DC TIG, has a rotary screw compressor giving 26 CFM at 100 PSI (80-160 PSI range), and 13,000W peak / 10,500W continuous; 771 lb.
- Brand: Miller
- Model: Trailblazer 302 Kohler Air Pak
- MPN: 907549001
- Processes: Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), DC TIG (GTAW)
- Engine: Kohler Gasoline Engine, 23 HP, Twin-Cylinder, Air-Cooled
Dependablepower →
COMPLETE PRODUCT INFORMATION
Full Product Description
The Miller Trailblazer 302 Air Pak (907549001) is a gas welder/generator with a 23 HP Kohler twin and 12-gallon tank. It welds 20-300A (300A at 32V, 100%) in stick, MIG, flux-cored and DC TIG, has a rotary screw compressor giving 26 CFM at 100 PSI (80-160 PSI range), and 13,000W peak / 10,500W continuous; 771 lb.
Specifications
- Brand: Miller
- Part / Model Number: 907549001
- Processes: Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), DC TIG (GTAW)
- Engine: Kohler Gasoline Engine, 23 HP, Twin-Cylinder, Air-Cooled
- Rated Welding Output: 300A @ 32V, 100% Duty Cycle
- Welding Output Range: 20 – 300 Amps
- Auxiliary Power Output: 13,000 Watts Peak, 10,500 Watts Continuous
- Compressor Type: Rotary Screw Air Compressor
- Air Compressor Output: 26 CFM at 100 PSI
- Air Pressure Range: 80–160 PSI
- Fuel Capacity: 12 gallons (45.4 liters)
- Run Time: Up to 18 hours at idle
- Start Type: Electric Start
- Cooling System: Air-Cooled
- Dimensions: 59.75 in L × 20 in W × 32.75 in H
- Weight: 771 lbs (350 kg)
Technical Specifications
Product data| Product | Miller Trailblazer 302 Kohler Air Pak Welder/Generator |
|---|---|
| SKU | 907549001 |
| Brand | Miller |
| Model | Trailblazer 302 Kohler Air Pak |
| MPN | 907549001 |
| Processes | Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), DC TIG (GTAW) |
| Engine | Kohler Gasoline Engine, 23 HP, Twin-Cylinder, Air-Cooled |
| Rated Welding Output | 300A @ 32V, 100% Duty Cycle |
| Welding Output Range | 20 – 300 Amps |
| Auxiliary Power Output | 13,000 Watts Peak, 10,500 Watts Continuous |
| Compressor Type | Rotary Screw Air Compressor |
| Air Compressor Output | 26 CFM at 100 PSI |
| Air Pressure Range | 80–160 PSI |
| Fuel Capacity | 12 gallons (45.4 liters) |
| Run Time | Up to 18 hours at idle |
| Start Type | Electric Start |
| Cooling System | Air-Cooled |
| Dimensions | 59.75 in L × 20 in W × 32.75 in H |
| Weight | 771 lbs (350 kg) |
| GTIN | 715959334056 |
| Google Product Category | 2920 (Welding Machines) |
| Warranty | 3-Year Miller True Blue Warranty |
| Part Number | 907549001 |
Engineered forreal-world performance907549001
DELIVERY & AFTER-SALES INFORMATION
Shipping & Returns
Important information for this product before and after purchase.Heavy or oversized equipment delivery is coordinated according to the product and destination address.
Timing and applicable delivery arrangements are confirmed during checkout or by Kayros Tool support.
Contact Kayros Tool before returning an item so eligibility, product condition, and return instructions can be confirmed.
Overview
The Miller Trailblazer 302 Air Pak (907549001) is a gas welder/generator with a 23 HP Kohler twin and 12-gallon tank. It welds 20-300A (300A at 32V, 100%) in stick, MIG, flux-cored and DC TIG, has a rotary screw compressor giving 26 CFM at 100 PSI (80-160 PSI range), and 13,000W peak / 10,500W continuous; 771 lb.
Specifications
- Brand: Miller
- Part / Model Number: 907549001
- Processes: Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), DC TIG (GTAW)
- Engine: Kohler Gasoline Engine, 23 HP, Twin-Cylinder, Air-Cooled
- Rated Welding Output: 300A @ 32V, 100% Duty Cycle
- Welding Output Range: 20 – 300 Amps
- Auxiliary Power Output: 13,000 Watts Peak, 10,500 Watts Continuous
- Compressor Type: Rotary Screw Air Compressor
- Air Compressor Output: 26 CFM at 100 PSI
- Air Pressure Range: 80–160 PSI
- Fuel Capacity: 12 gallons (45.4 liters)
- Run Time: Up to 18 hours at idle
- Start Type: Electric Start
- Cooling System: Air-Cooled
- Dimensions: 59.75 in L × 20 in W × 32.75 in H
- Weight: 771 lbs (350 kg)
Specifications
Brand: Miller
Model: Trailblazer 302 Kohler Air Pak
MPN: 907549001
Processes: Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), DC TIG (GTAW)
Engine: Kohler Gasoline Engine, 23 HP, Twin-Cylinder, Air-Cooled
Rated Welding Output: 300A @ 32V, 100% Duty Cycle
Welding Output Range: 20 – 300 Amps
Auxiliary Power Output: 13,000 Watts Peak, 10,500 Watts Continuous
Compressor Type: Rotary Screw Air Compressor
Air Compressor Output: 26 CFM at 100 PSI
Air Pressure Range: 80–160 PSI
Fuel Capacity: 12 gallons (45.4 liters)
Run Time: Up to 18 hours at idle
Start Type: Electric Start
Cooling System: Air-Cooled
Dimensions: 59.75 in L × 20 in W × 32.75 in H
Weight: 771 lbs (350 kg)
GTIN: 715959334056
Google Product Category: 2920 (Welding Machines)
Warranty: 3-Year Miller True Blue Warranty
Part Number: 907549001
