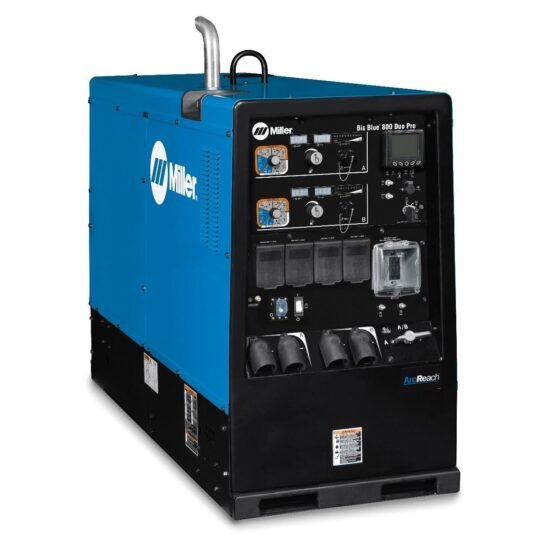

Miller Big Blue 800 Duo Pro Dual-Operator Welder/Generator – ArcReach
The Miller Big Blue 800 Duo Pro (907751) is a dual operator welder/generator with a Perkins 2200 turbo diesel (33.3 HP at 1,800 RPM) and 24-gallon tank.
BUILT TO KEEP YOU MOVING
POWER WHEN
IT MATTERS MOST
The Miller Big Blue 800 Duo Pro (907751) is a dual operator welder/generator with a Perkins 2200 turbo diesel (33.3 HP at 1,800 RPM) and 24-gallon tank.
- Brand: Miller
- Model: Big Blue 800 Duo Pro
- MPN: 907751
- Engine: Perkins 2200 Series Turbo Diesel, Tier 4 Final
- Engine Power: 33.3 HP at 1,800 RPM
Dependablepower →
COMPLETE PRODUCT INFORMATION
Full Product Description
The Miller Big Blue 800 Duo Pro (907751) is a dual operator welder/generator with a Perkins 2200 turbo diesel (33.3 HP at 1,800 RPM) and 24-gallon tank. It provides two independent 400A outputs (20-400A single) for stick, MIG, DC TIG, flux-cored and gouging, has ArcReach, and gives 27,000W 3-phase / 11,000W 1-phase; about 1,650 lb.
Specifications
- Brand: Miller
- Part / Model Number: Big Blue 800 Duo Pro
- Engine: Perkins 2200 Series Turbo Diesel, Tier 4 Final
- Engine Power: 33.3 HP at 1,800 RPM
- Fuel Type: Diesel
- Fuel Capacity: 24 gallons (90.8 liters)
- Welding Output (Single Operator): 20 – 400 Amps
- Welding Output (Dual Operator): Two independent 400 A outputs
- Processes: Stick, MIG, DC TIG, Flux-Cored, Air Carbon Arc Gouging
- Generator Power: 27,000 watts (3-phase) / 11,000 watts (1-phase)
- ArcReach Technology: Yes – full parameter control at remote
- Dimensions: 60.5 in L × 28.5 in W × 43 in H
- Weight: Approx. 1,650 lbs (748.4 kg)
- Noise Level: 74.5 dB @ 23 ft (under load)
- Run Time (at 100% Load): Up to 8.6 hours
- GTIN: 715959675951
Technical Specifications
Product data| Product | Miller Big Blue 800 Duo Pro Dual-Operator Welder/Generator – ArcReach |
|---|---|
| SKU | 907751 |
| Brand | Miller |
| Model | Big Blue 800 Duo Pro |
| MPN | 907751 |
| Engine | Perkins 2200 Series Turbo Diesel, Tier 4 Final |
| Engine Power | 33.3 HP at 1,800 RPM |
| Fuel Type | Diesel |
| Fuel Capacity | 24 gallons (90.8 liters) |
| Welding Output (Single Operator) | 20 – 400 Amps |
| Welding Output (Dual Operator) | Two independent 400 A outputs |
| Processes | Stick, MIG, DC TIG, Flux-Cored, Air Carbon Arc Gouging |
| Generator Power | 27,000 watts (3-phase) / 11,000 watts (1-phase) |
| ArcReach Technology | Yes – full parameter control at remote |
| Dimensions | 60.5 in L × 28.5 in W × 43 in H |
| Weight | Approx. 1,650 lbs (748.4 kg) |
| Noise Level | 74.5 dB @ 23 ft (under load) |
| Run Time (at 100% Load) | Up to 8.6 hours |
| GTIN | 715959675951 |
| Google Product Category | 2920 (Welding Machines) |
| Warranty | 3-Year Miller True Blue Warranty |
| Part Number | 907751 |
Engineered forreal-world performance907751
DELIVERY & AFTER-SALES INFORMATION
Shipping & Returns
Important information for this product before and after purchase.Heavy or oversized equipment delivery is coordinated according to the product and destination address.
Timing and applicable delivery arrangements are confirmed during checkout or by Kayros Tool support.
Contact Kayros Tool before returning an item so eligibility, product condition, and return instructions can be confirmed.
Overview
The Miller Big Blue 800 Duo Pro (907751) is a dual operator welder/generator with a Perkins 2200 turbo diesel (33.3 HP at 1,800 RPM) and 24-gallon tank. It provides two independent 400A outputs (20-400A single) for stick, MIG, DC TIG, flux-cored and gouging, has ArcReach, and gives 27,000W 3-phase / 11,000W 1-phase; about 1,650 lb.
Specifications
- Brand: Miller
- Part / Model Number: Big Blue 800 Duo Pro
- Engine: Perkins 2200 Series Turbo Diesel, Tier 4 Final
- Engine Power: 33.3 HP at 1,800 RPM
- Fuel Type: Diesel
- Fuel Capacity: 24 gallons (90.8 liters)
- Welding Output (Single Operator): 20 – 400 Amps
- Welding Output (Dual Operator): Two independent 400 A outputs
- Processes: Stick, MIG, DC TIG, Flux-Cored, Air Carbon Arc Gouging
- Generator Power: 27,000 watts (3-phase) / 11,000 watts (1-phase)
- ArcReach Technology: Yes – full parameter control at remote
- Dimensions: 60.5 in L × 28.5 in W × 43 in H
- Weight: Approx. 1,650 lbs (748.4 kg)
- Noise Level: 74.5 dB @ 23 ft (under load)
- Run Time (at 100% Load): Up to 8.6 hours
- GTIN: 715959675951
Specifications
Brand: Miller
Model: Big Blue 800 Duo Pro
MPN: 907751
Engine: Perkins 2200 Series Turbo Diesel, Tier 4 Final
Engine Power: 33.3 HP at 1,800 RPM
Fuel Type: Diesel
Fuel Capacity: 24 gallons (90.8 liters)
Welding Output (Single Operator): 20 – 400 Amps
Welding Output (Dual Operator): Two independent 400 A outputs
Processes: Stick, MIG, DC TIG, Flux-Cored, Air Carbon Arc Gouging
Generator Power: 27,000 watts (3-phase) / 11,000 watts (1-phase)
ArcReach Technology: Yes – full parameter control at remote
Dimensions: 60.5 in L × 28.5 in W × 43 in H
Weight: Approx. 1,650 lbs (748.4 kg)
Noise Level: 74.5 dB @ 23 ft (under load)
Run Time (at 100% Load): Up to 8.6 hours
GTIN: 715959675951
Google Product Category: 2920 (Welding Machines)
Warranty: 3-Year Miller True Blue Warranty
Part Number: 907751
