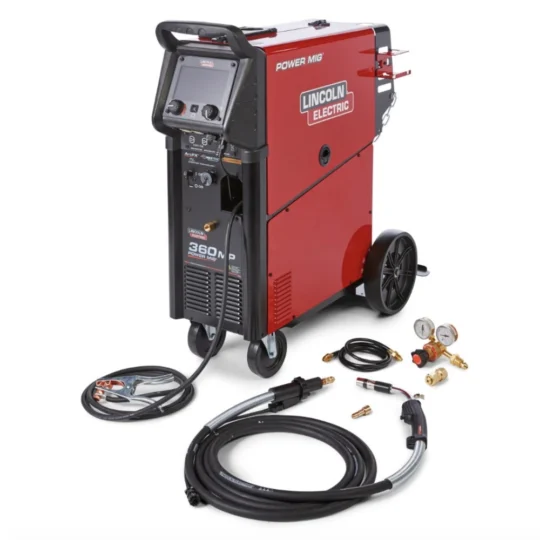

Lincoln Electric Power MIG 360 MP K4467-1 Pulsed Multi-Process Welder – 208–575V
The Lincoln Power MIG 360MP (K4467-1) is a pulsed multi-process welder for MIG, pulsed MIG, flux-cored, stick and DC TIG on 208-575V single or 3-phase.
CONTROL FOR EVERY BEAD
PRECISION WHERE
THE WORK DEMANDS IT
The Lincoln Power MIG 360MP (K4467-1) is a pulsed multi-process welder for MIG, pulsed MIG, flux-cored, stick and DC TIG on 208-575V single or 3-phase.
- Voltage: 575V
- Brand: Lincoln Electric
- Model: Power MIG 360MP
- MPN: K4467-1
- Processes: MIG (GMAW), Pulsed MIG, Flux-Cored (FCAW), Stick (SMAW), DC TIG (GTAW)
Dependablepower →
COMPLETE PRODUCT INFORMATION
Full Product Description
The Lincoln Power MIG 360MP (K4467-1) is a pulsed multi-process welder for MIG, pulsed MIG, flux-cored, stick and DC TIG on 208-575V single or 3-phase. It gives 5-360A (300A at 29V, 60%), 50-700 IPM feed for 8 and 12-inch spools, color LCD and True Torque drive, weighs 240 lb. and includes a Magnum PRO gun, work clamp, regulator and drive rolls.
Specifications
- Brand: Lincoln Electric
- Part / Model Number: K4467-1
- Voltage: 575V
- Processes: MIG (GMAW), Pulsed MIG, Flux-Cored (FCAW), Stick (SMAW), DC TIG (GTAW)
- Input Voltage: 208–575V, 1/3 Phase, 50/60 Hz
- Output Range: 5 – 360 Amps
- Rated Output: 300A @ 29V, 60% Duty Cycle
- Wire Feed Speed: 50 – 700 IPM
- Technology: Inverter, Pulse, Waveform Control Technology, True Torque Drive System
- Control Interface: Color LCD, push-button navigation, Synergic setup
- Spool Capacity: 8 in and 12 in spools
- Material Compatibility: Mild Steel, Stainless Steel, Aluminum
- Included Accessories: Magnum PRO MIG gun, work clamp, gas regulator, drive rolls
- Dimensions: 39.8 in H × 19.5 in W × 38.0 in D
- Weight: 240 lbs (108.9 kg)
Technical Specifications
Product data| Product | Lincoln Electric Power MIG 360 MP K4467-1 Pulsed Multi-Process Welder – 208–575V |
|---|---|
| SKU | K4467-1 |
| Voltage | 575V |
| Brand | Lincoln Electric |
| Model | Power MIG 360MP |
| MPN | K4467-1 |
| Processes | MIG (GMAW), Pulsed MIG, Flux-Cored (FCAW), Stick (SMAW), DC TIG (GTAW) |
| Input Voltage | 208–575V, 1/3 Phase, 50/60 Hz |
| Output Range | 5 – 360 Amps |
| Rated Output | 300A @ 29V, 60% Duty Cycle |
| Wire Feed Speed | 50 – 700 IPM |
| Technology | Inverter, Pulse, Waveform Control Technology, True Torque Drive System |
| Control Interface | Color LCD, push-button navigation, Synergic setup |
| Spool Capacity | 8 in and 12 in spools |
| Material Compatibility | Mild Steel, Stainless Steel, Aluminum |
| Included Accessories | Magnum PRO MIG gun, work clamp, gas regulator, drive rolls |
| Dimensions | 39.8 in H × 19.5 in W × 38.0 in D |
| Weight | 240 lbs (108.9 kg) |
| Portability | Industrial wheeled cart compatible |
| Google Product Category | 2920 (Welding Machines) |
| Warranty | 3-Year Lincoln Industrial Warranty |
| Part Number | K4467-1 |
Engineered forreal-world performanceK4467-1
DELIVERY & AFTER-SALES INFORMATION
Shipping & Returns
Important information for this product before and after purchase.Heavy or oversized equipment delivery is coordinated according to the product and destination address.
Timing and applicable delivery arrangements are confirmed during checkout or by Kayros Tool support.
Contact Kayros Tool before returning an item so eligibility, product condition, and return instructions can be confirmed.
Overview
The Lincoln Power MIG 360MP (K4467-1) is a pulsed multi-process welder for MIG, pulsed MIG, flux-cored, stick and DC TIG on 208-575V single or 3-phase. It gives 5-360A (300A at 29V, 60%), 50-700 IPM feed for 8 and 12-inch spools, color LCD and True Torque drive, weighs 240 lb. and includes a Magnum PRO gun, work clamp, regulator and drive rolls.
Specifications
- Brand: Lincoln Electric
- Part / Model Number: K4467-1
- Voltage: 575V
- Processes: MIG (GMAW), Pulsed MIG, Flux-Cored (FCAW), Stick (SMAW), DC TIG (GTAW)
- Input Voltage: 208–575V, 1/3 Phase, 50/60 Hz
- Output Range: 5 – 360 Amps
- Rated Output: 300A @ 29V, 60% Duty Cycle
- Wire Feed Speed: 50 – 700 IPM
- Technology: Inverter, Pulse, Waveform Control Technology, True Torque Drive System
- Control Interface: Color LCD, push-button navigation, Synergic setup
- Spool Capacity: 8 in and 12 in spools
- Material Compatibility: Mild Steel, Stainless Steel, Aluminum
- Included Accessories: Magnum PRO MIG gun, work clamp, gas regulator, drive rolls
- Dimensions: 39.8 in H × 19.5 in W × 38.0 in D
- Weight: 240 lbs (108.9 kg)
Specifications
Voltage: 575V
Brand: Lincoln Electric
Model: Power MIG 360MP
MPN: K4467-1
Processes: MIG (GMAW), Pulsed MIG, Flux-Cored (FCAW), Stick (SMAW), DC TIG (GTAW)
Input Voltage: 208–575V, 1/3 Phase, 50/60 Hz
Output Range: 5 – 360 Amps
Rated Output: 300A @ 29V, 60% Duty Cycle
Wire Feed Speed: 50 – 700 IPM
Technology: Inverter, Pulse, Waveform Control Technology, True Torque Drive System
Control Interface: Color LCD, push-button navigation, Synergic setup
Spool Capacity: 8 in and 12 in spools
Material Compatibility: Mild Steel, Stainless Steel, Aluminum
Included Accessories: Magnum PRO MIG gun, work clamp, gas regulator, drive rolls
Dimensions: 39.8 in H × 19.5 in W × 38.0 in D
Weight: 240 lbs (108.9 kg)
Portability: Industrial wheeled cart compatible
Google Product Category: 2920 (Welding Machines)
Warranty: 3-Year Lincoln Industrial Warranty
Part Number: K4467-1
