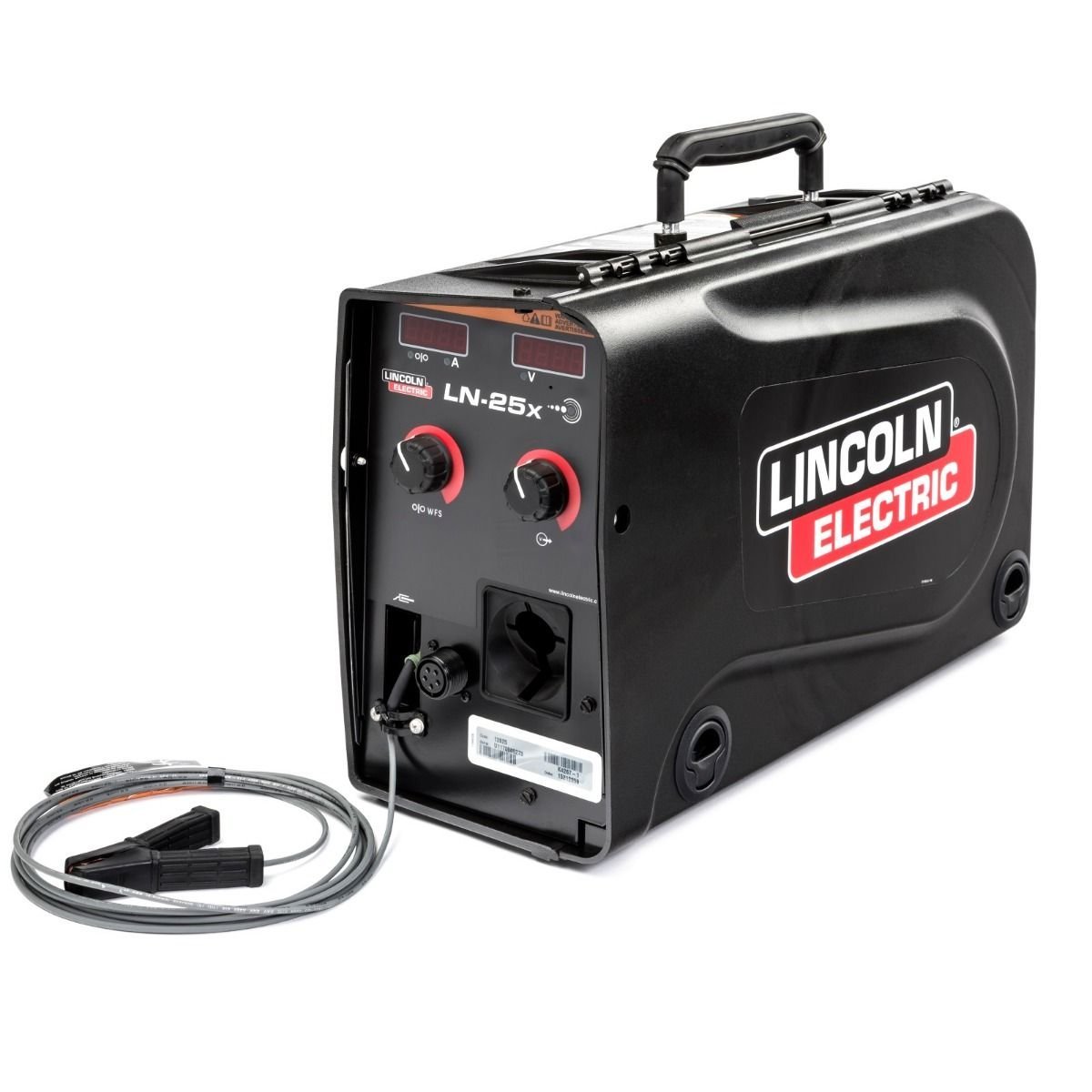

Lincoln Electric LN-25X K4267 Portable Wire Feeder – CrossLinc
The Lincoln LN-25X (K4267) is a portable MIG and flux-cored wire feeder with CrossLinc remote control, running from a 14-pin cable or arc power. It feeds 50-700 IPM, handles 0.023-5/64-inch wire with a MAXTRAC 4-roll drive, is rated 450A at 100%, IP23, has a digital display and 15-foot input cable, and weighs 38 lb.
CONTROL FOR EVERY BEAD
PRECISION WHERE
THE WORK DEMANDS IT
The Lincoln LN-25X (K4267) is a portable MIG and flux-cored wire feeder with CrossLinc remote control, running from a 14-pin cable or arc power. It feeds 50-700 IPM, handles 0.023-5/64-inch wire with a MAXTRAC 4-roll drive, is rated 450A at 100%, IP23, has a digital display and 15-foot input cable, and weighs 38 lb.
- Brand: Lincoln Electric
- Model: LN-25X with CrossLinc Technology
- MPN (Part Number): K4267
- Process Type: Flux-Cored (FCAW), MIG (GMAW)
- Input Power: 14-pin Control Cable / Arc Power
Dependablepower →
COMPLETE PRODUCT INFORMATION
Full Product Description
The Lincoln LN-25X (K4267) is a portable MIG and flux-cored wire feeder with CrossLinc remote control, running from a 14-pin cable or arc power. It feeds 50-700 IPM, handles 0.023-5/64-inch wire with a MAXTRAC 4-roll drive, is rated 450A at 100%, IP23, has a digital display and 15-foot input cable, and weighs 38 lb.
Specifications
- Brand: Lincoln Electric
- Part / Model Number: K4267
- Process Type: Flux-Cored (FCAW), MIG (GMAW)
- Input Power: 14-pin Control Cable / Arc Power
- Wire Feed Speed Range: 50 – 700 in/min (1.3 – 17.8 m/min)
- Wire Size Range: 0.023 – 5/64 in (0.6 – 2.0 mm)
- Drive System: MAXTRAC 4-roll drive
- Digital Display: Voltage, wire speed, error codes
- Remote Control: Yes, via CrossLinc
- Input Cable Length: 15 ft (4.5 m)
- Housing: Impact-resistant polymer with sealed electronics
- Protection Class: IP23-rated for outdoor use
- Duty Cycle: 100% @ 450 Amps
- Dimensions: 14.8 in x 7.8 in x 21.7 in (375 mm x 198 mm x 551 mm)
- Weight: 38 lbs (17.2 kg)
Technical Specifications
Product data| Product | Lincoln Electric LN-25X K4267 Portable Wire Feeder – CrossLinc |
|---|---|
| SKU | K4267 |
| Brand | Lincoln Electric |
| Model | LN-25X with CrossLinc Technology |
| MPN (Part Number) | K4267 |
| Process Type | Flux-Cored (FCAW), MIG (GMAW) |
| Input Power | 14-pin Control Cable / Arc Power |
| Wire Feed Speed Range | 50 – 700 in/min (1.3 – 17.8 m/min) |
| Wire Size Range | 0.023 – 5/64 in (0.6 – 2.0 mm) |
| Drive System | MAXTRAC 4-roll drive |
| Digital Display | Voltage, wire speed, error codes |
| Remote Control | Yes, via CrossLinc |
| Input Cable Length | 15 ft (4.5 m) |
| Housing | Impact-resistant polymer with sealed electronics |
| Protection Class | IP23-rated for outdoor use |
| Duty Cycle | 100% @ 450 Amps |
| Dimensions | 14.8 in x 7.8 in x 21.7 in (375 mm x 198 mm x 551 mm) |
| Weight | 38 lbs (17.2 kg) |
| Compatible Power Sources | Lincoln power sources with CrossLinc or standard CV arc |
| Standards | CSA, CE compliant |
| Applications | Field fabrication, construction, shipbuilding, industrial welding |
| Warranty | 3-Year Lincoln Warranty |
| Part Number | K4267 |
Engineered forreal-world performanceK4267
DELIVERY & AFTER-SALES INFORMATION
Shipping & Returns
Important information for this product before and after purchase.Heavy or oversized equipment delivery is coordinated according to the product and destination address.
Timing and applicable delivery arrangements are confirmed during checkout or by Kayros Tool support.
Contact Kayros Tool before returning an item so eligibility, product condition, and return instructions can be confirmed.
Overview
The Lincoln LN-25X (K4267) is a portable MIG and flux-cored wire feeder with CrossLinc remote control, running from a 14-pin cable or arc power. It feeds 50-700 IPM, handles 0.023-5/64-inch wire with a MAXTRAC 4-roll drive, is rated 450A at 100%, IP23, has a digital display and 15-foot input cable, and weighs 38 lb.
Specifications
- Brand: Lincoln Electric
- Part / Model Number: K4267
- Process Type: Flux-Cored (FCAW), MIG (GMAW)
- Input Power: 14-pin Control Cable / Arc Power
- Wire Feed Speed Range: 50 – 700 in/min (1.3 – 17.8 m/min)
- Wire Size Range: 0.023 – 5/64 in (0.6 – 2.0 mm)
- Drive System: MAXTRAC 4-roll drive
- Digital Display: Voltage, wire speed, error codes
- Remote Control: Yes, via CrossLinc
- Input Cable Length: 15 ft (4.5 m)
- Housing: Impact-resistant polymer with sealed electronics
- Protection Class: IP23-rated for outdoor use
- Duty Cycle: 100% @ 450 Amps
- Dimensions: 14.8 in x 7.8 in x 21.7 in (375 mm x 198 mm x 551 mm)
- Weight: 38 lbs (17.2 kg)
Specifications
Brand: Lincoln Electric
Model: LN-25X with CrossLinc Technology
MPN (Part Number): K4267
Process Type: Flux-Cored (FCAW), MIG (GMAW)
Input Power: 14-pin Control Cable / Arc Power
Wire Feed Speed Range: 50 – 700 in/min (1.3 – 17.8 m/min)
Wire Size Range: 0.023 – 5/64 in (0.6 – 2.0 mm)
Drive System: MAXTRAC 4-roll drive
Digital Display: Voltage, wire speed, error codes
Remote Control: Yes, via CrossLinc
Input Cable Length: 15 ft (4.5 m)
Housing: Impact-resistant polymer with sealed electronics
Protection Class: IP23-rated for outdoor use
Duty Cycle: 100% @ 450 Amps
Dimensions: 14.8 in x 7.8 in x 21.7 in (375 mm x 198 mm x 551 mm)
Weight: 38 lbs (17.2 kg)
Compatible Power Sources: Lincoln power sources with CrossLinc or standard CV arc
Standards: CSA, CE compliant
Applications: Field fabrication, construction, shipbuilding, industrial welding
Warranty: 3-Year Lincoln Warranty
Part Number: K4267
