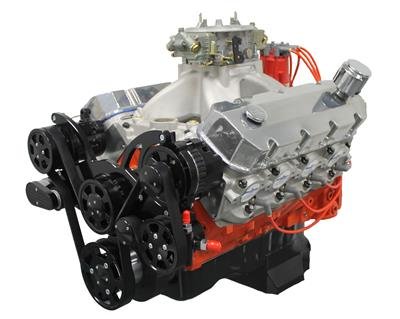

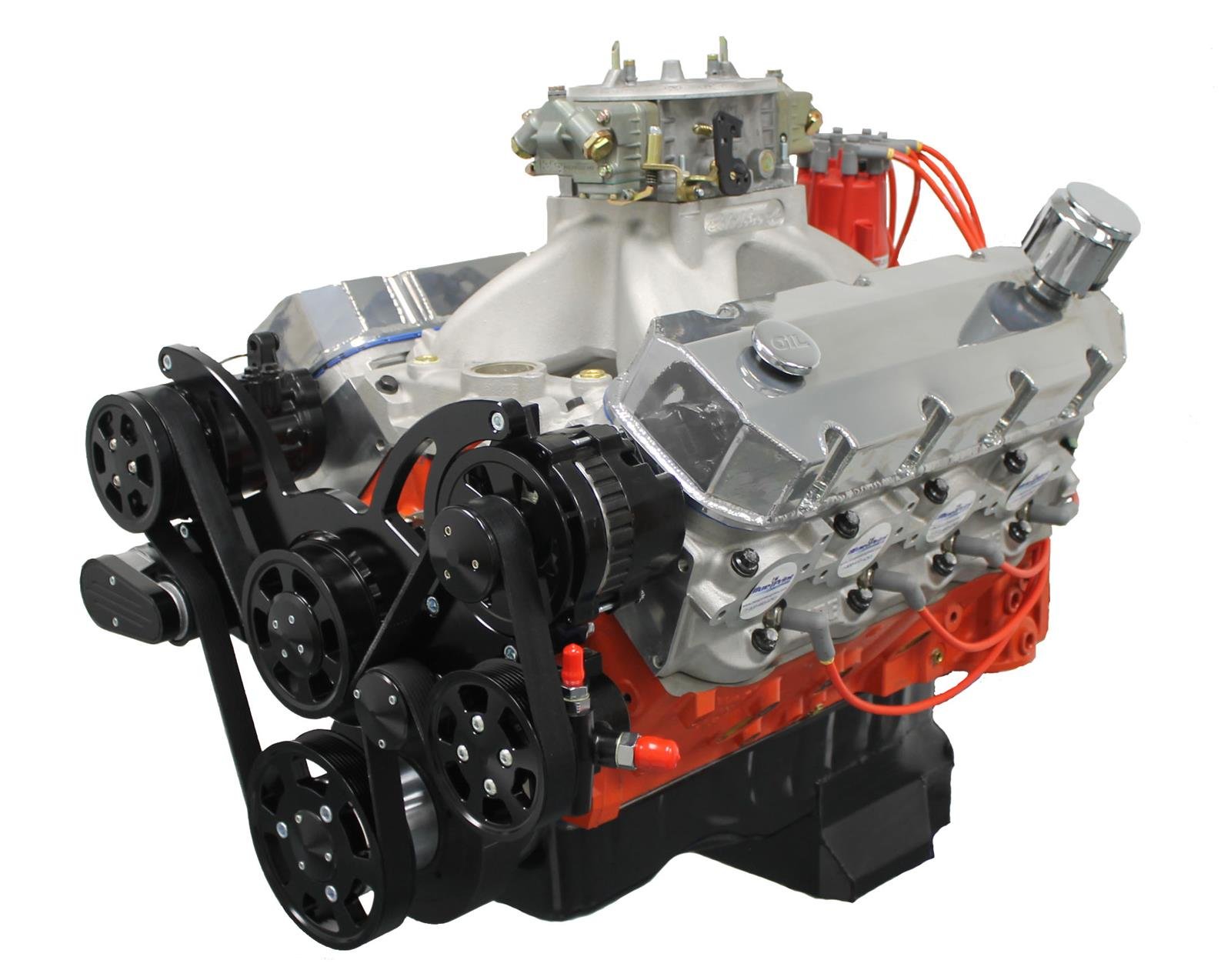

BluePrint Motorsports Pro Series PS6320CTCKB 632 Fully Dressed Long Block Crate Engine – 815 HP

The BluePrint Pro Series PS6320CTCKB is a 632 (10.3L) Chevy big block fully dressed long block rated 815 HP, with 11.0:1 compression, aluminum heads, internal balance, long water pump and a 1,250 CFM carburetor. Includes carburetor, heads, distributor, balancer, intake, oil pan, plug wires, plugs, timing cover, valve covers and water pump; air cleaner, computer, flexplate, flywheel, supercharger, throttle body and harness are not included.

Specifications

• Brand: BluePrint Engines
• Part / Model Number: PS6320CTCKB
• Actual Engine Displacement: 10.3L/632
• Advertised Compression Ratio: 11.0:1
• Assembled: Yes
• Cam Style: Hydraulic roller
• Crate Engine Cylinder Head Material: Aluminum
• Crate Engine Family: Chevy Big Block
• Engine Balance: Internal
• Engine Block Material: Cast iron
• Intake Manifold Style: Carbureted
• Part Type: Crate Engines
• Rear Main Seal Style: 1-piece
• Remanufactured: No
• Special Attention: Included carburetor has a 1,250 cfm flow rate.

Included: Carburetor, Cylinder Heads, Distributor, Harmonic Balancer, Intake Manifold, Oil Pan, Spark Plug Wires, Spark Plugs, Timing Cover, Valve Covers, Water Pump.

Actual Engine Displacement: 10.3L/632

Advertised Compression Ratio: 11.0:1

Air Cleaner Included: No

Assembled: Yes

Brand: BluePrint Engines

Cam Style: Hydraulic roller, OE roller

Carburetor Included: Yes

Computer Included: No

Crate Engine Cylinder Head Material: Aluminum

Crate Engine Family: Chevy Big Block

Cylinder Heads Included: Yes

Distributor Included: Yes

Engine Balance: Internal

Engine Block Material: Cast iron

Flexplate Included: No

Flywheel Included: No

Harmonic Balancer Included: Yes

Intake Manifold Included: Yes

Intake Manifold Style: Carbureted

Manufacturer's Part Number: PS6320CTCKB

Notes: Tall deck engine. Block has a mechanical fuel pump provision. Requires an internal balance flywheel/flexplate. The 1-piece rear main seal small block Chevy flywheel/ flexplate will not bolt to this engine. For further specifications, please see the Charts & Guides above. O balance flywheel or flexplate must be used. See the suggested parts tab for the correct flywheel or flexplate to use with this engine. Includes black complete front accessory drive system.

Oil Pan Included: Yes

Part Type: Crate Engines

Product Line: BluePrint Motorsports Pro Series Chevy 632 C.I.D. 815 HP Fully Dressed Long Block Crate Engines

Quantity: Sold individually.

Rear Main Seal Style: 1-piece

Remanufactured: No

Spark Plug Wires Included: Yes

Spark Plugs Included: Yes

Special Attention: Included carburetor has a 1,250 cfm flow rate.

Stall Speed Rating RPM Range: 3,800-4,200

Supercharger Included: No

Throttle Body Included: No

Timing Cover Included: Yes

UPC: 00887753744555

Valve Covers Included: Yes

Water Pump Included: Yes

Water Pump Style: Long

Wiring Harness Included: No
