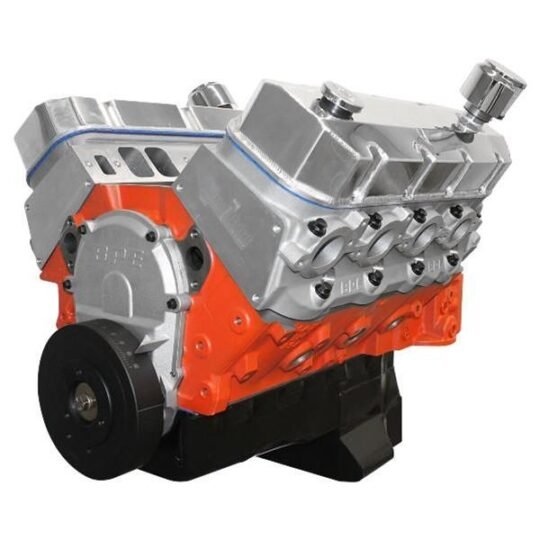

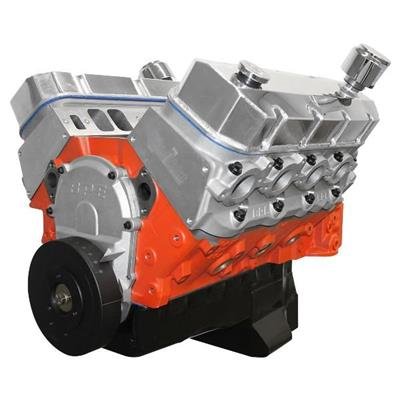

BluePrint Motorsports Pro Series PS6320CT 632 Base Long Block Crate Engine – 815 HP

The BluePrint Pro Series PS6320CT is a 632 (10.3L) Chevy big block tall deck stroker base long block rated 815 HP, with 11.0:1 compression, aluminum heads, hydraulic roller cam and internal balance; a 1,250 CFM carburetor is recommended. Includes heads, balancer, oil pan, timing cover and valve covers; other components are not included.

Specifications

• Brand: BluePrint Engines
• Part / Model Number: PS6320CT
• Actual Engine Displacement: 10.3L/632
• Advertised Compression Ratio: 11.0:1
• Assembled: Yes
• Cam Style: Hydraulic roller
• Crate Engine Cylinder Head Material: Aluminum
• Crate Engine Family: Chevy Big Block
• Engine Balance: Internal
• Engine Block Material: Cast iron
• Part Type: Crate Engines
• Rear Main Seal Style: 1-piece
• Remanufactured: No
• Special Attention: It is recommended to use a 1,250 cfm carburetor.
• Stall Speed Rating RPM Range: 3,800-4,200

Included: Cylinder Heads, Harmonic Balancer, Oil Pan, Timing Cover, Valve Covers.

Actual Engine Displacement: 10.3L/632

Advertised Compression Ratio: 11.0:1

Air Cleaner Included: No

Assembled: Yes

Brand: BluePrint Engines

Cam Style: Hydraulic roller, OE roller

Carburetor Included: No

Computer Included: No

Crate Engine Cylinder Head Material: Aluminum

Crate Engine Family: Chevy Big Block

Cylinder Heads Included: Yes

Distributor Included: No

Engine Balance: Internal

Engine Block Material: Cast iron

Flexplate Included: No

Flywheel Included: No

Harmonic Balancer Included: Yes

Intake Manifold Included: No

Manufacturer's Part Number: PS6320CT

Notes: Tall deck engine. Block has a mechanical fuel pump provision. Requires an internal balance flywheel/flexplate. The 1-piece rear main seal small block Chevy flywheel/ flexplate will not bolt to this engine. O balance flywheel or flexplate must be used. See the suggested parts tab for the correct flywheel or flexplate to use with this engine.

Oil Pan Included: Yes

Part Type: Crate Engines

Product Line: BluePrint Motorsports Pro Series Chevy 632 C.I.D. 815 HP Base Long Block Crate Engines

Quantity: Sold individually.

Rear Main Seal Style: 1-piece

Remanufactured: No

Spark Plug Wires Included: No

Spark Plugs Included: No

Special Attention: It is recommended to use a 1,250 cfm carburetor.

Stall Speed Rating RPM Range: 3,800-4,200

Supercharger Included: No

Throttle Body Included: No

Timing Cover Included: Yes

UPC: 00887753744524

Valve Covers Included: Yes

Water Pump Included: No

Wiring Harness Included: No
