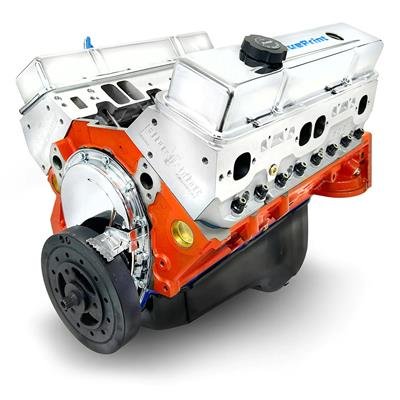

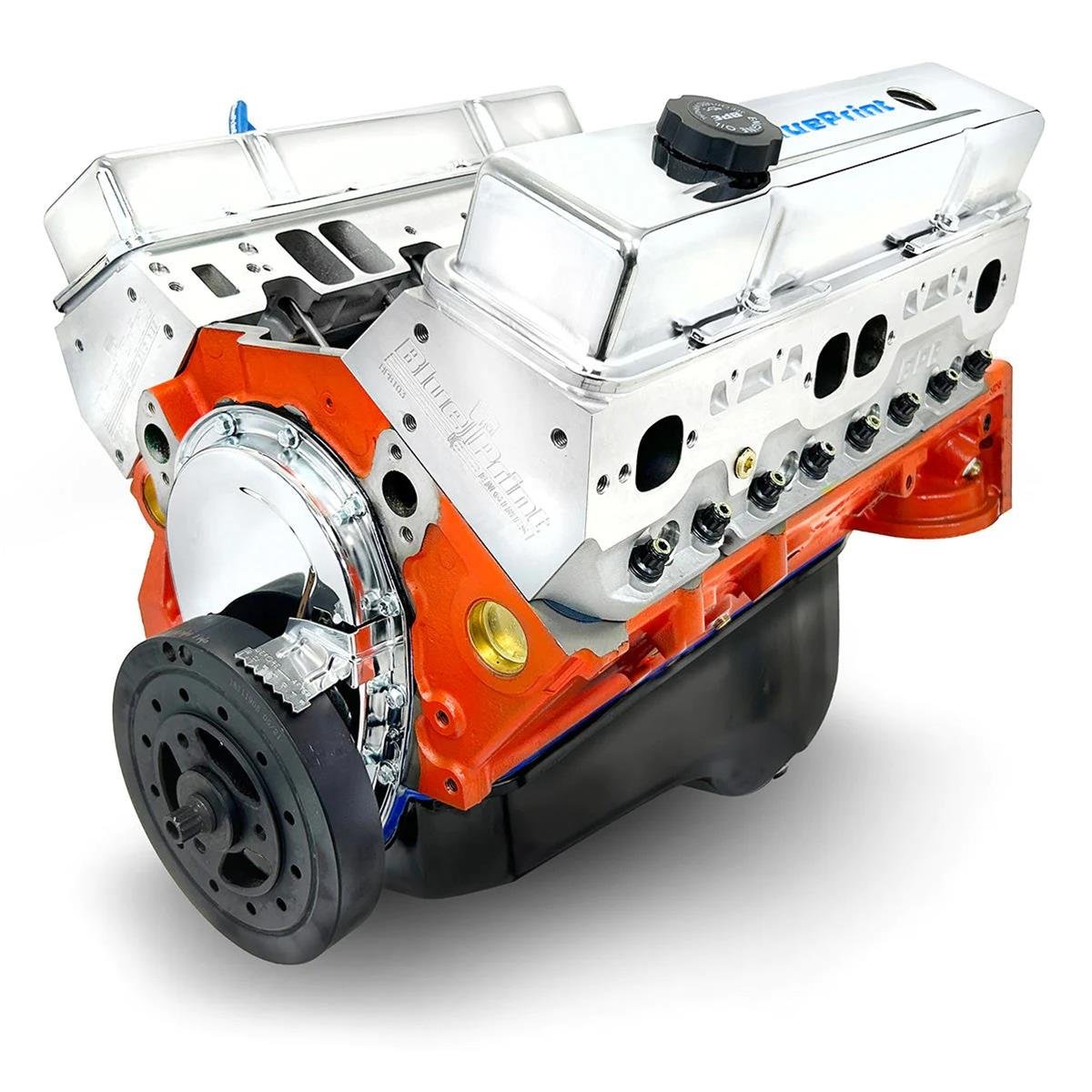

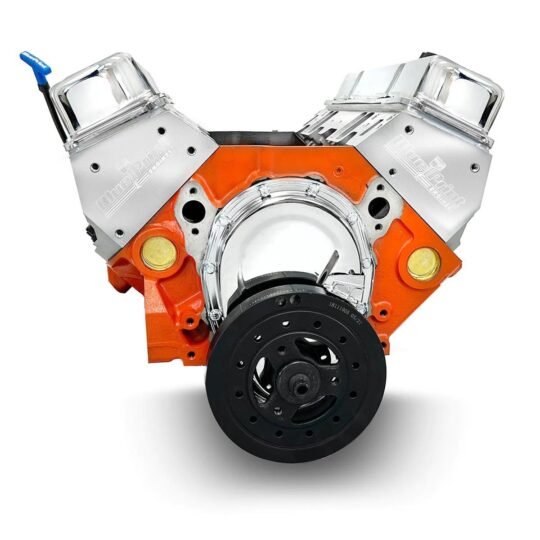

BluePrint Engines Pro Series PS4541CT1 454 Base Long Block Crate Engine – 563 HP

The BluePrint Pro Series PS4541CT1 is a 454 (7.4L) Chevy small block stroker base long block rated 563 HP and 545 lb.-ft., with 10.0:1 compression, 4-bolt main block, forged rotating assembly, aluminum heads and internal balance. Includes heads, balancer, oil pan, timing cover and valve covers; other components are not included.

Specifications

• Brand: BluePrint Engines
• Part / Model Number: PS4541CT1
• Actual Engine Displacement: 7.4L/454
• Advertised Compression Ratio: 10.0:1
• Assembled: Yes
• Cam Style: Hydraulic roller
• Crate Engine Cylinder Head Material: Aluminum
• Crate Engine Family: Chevy Small Block
• Engine Balance: Internal
• Engine Block Material: Cast iron
• Notes: Features a 4-bolt main block and a forged rotating assembly.
• Part Type: Crate Engines
• Rear Main Seal Style: 1-piece
• Remanufactured: No
• Stall Speed Rating RPM Range: 2,200-3,200

Included: Cylinder Heads, Harmonic Balancer, Oil Pan, Timing Cover, Valve Covers.

Actual Engine Displacement: 7.4L/454

Advertised Compression Ratio: 10.0:1

Air Cleaner Included: No

Assembled: Yes

Brand: BluePrint Engines

Cam Style: Hydraulic roller, OE roller

Carburetor Included: No

Computer Included: No

Crate Engine Cylinder Head Material: Aluminum

Crate Engine Family: Chevy Small Block

Cylinder Heads Included: Yes

Distributor Included: No

Engine Balance: Internal

Engine Block Material: Cast iron

Flexplate Included: No

Flywheel Included: No

Harmonic Balancer Included: Yes

Intake Manifold Included: No

Manufacturer's Part Number: PS4541CT1

Notes: Features a 4-bolt main block and a forged rotating assembly.

Oil Pan Included: Yes

Part Type: Crate Engines

Product Line: BluePrint Engines Pro Series Chevy 454 C.I.D. 563 HP Base Long Block Crate Engines

Quantity: Sold individually.

Rear Main Seal Style: 1-piece

Remanufactured: No

Spark Plug Wires Included: No

Spark Plugs Included: No

Stall Speed Rating RPM Range: 2,200-3,200

Supercharger Included: No

Throttle Body Included: No

Timing Cover Included: Yes

UPC: 00887753744814

Valve Covers Included: Yes

Water Pump Included: No

Wiring Harness Included: No
