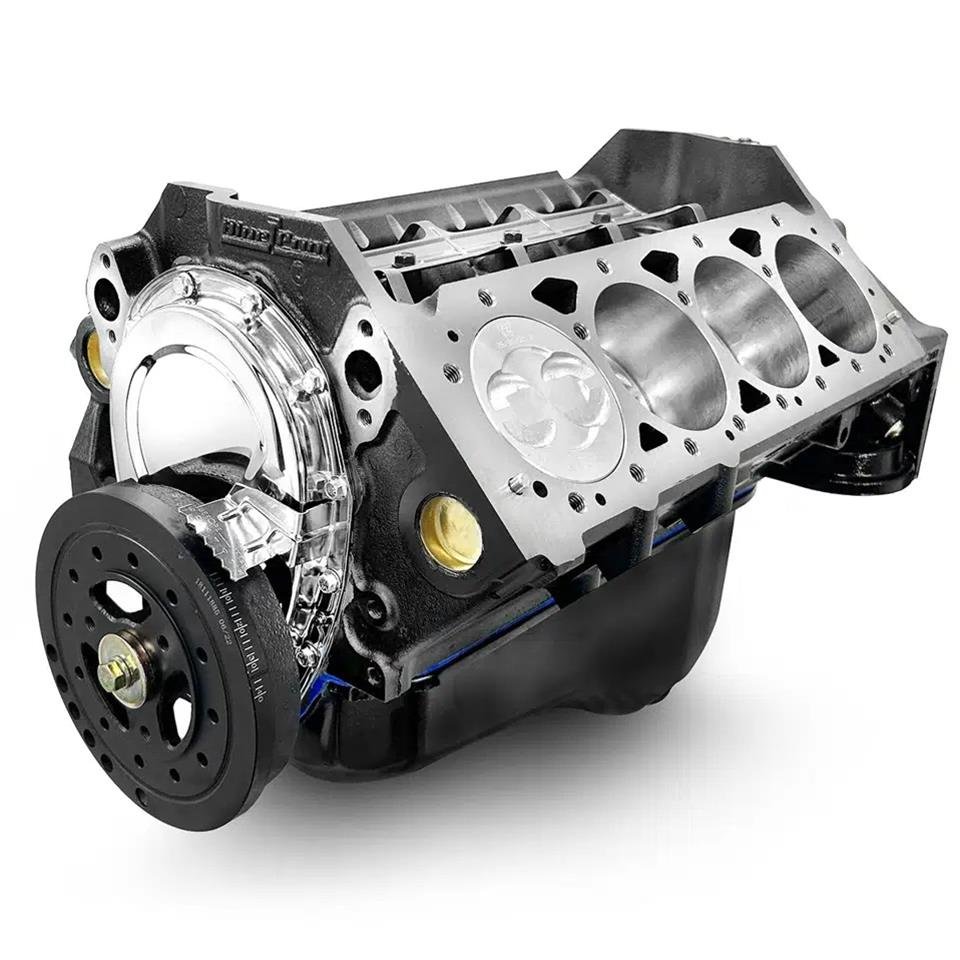

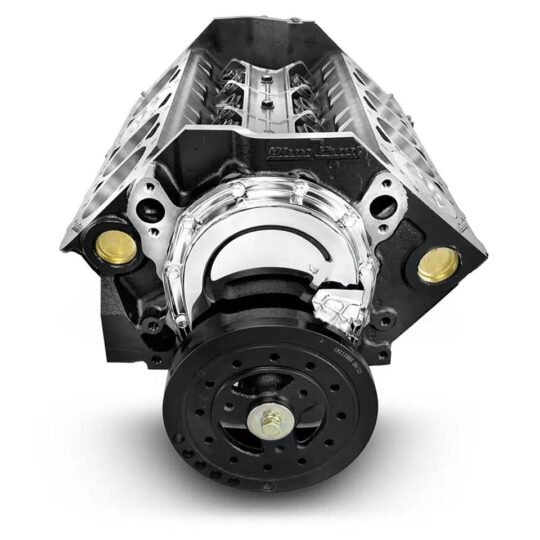

BluePrint Engines BP38318SP GM 383 Stroker Short Block Plus

The BluePrint BP38318SP is a 383 (6.3L) Chevy small block stroker Short Block Plus with a 4-bolt main iron block, 9.025-inch deck, cast crankshaft, I-beam rods, hypereutectic pistons, roller cam and external balance. Includes balancer, oil pan and timing cover; flexplate and flywheel are not included.

Specifications

• Brand: BluePrint Engines
• Part / Model Number: BP38318SP
• Actual Engine Displacement: 6.3L/383
• Assembled: Yes
• Connecting Rod Beam Style: I-beam
• Connecting Rod Material: Cast iron
• Crankshaft Material: Cast iron
• Crate Engine Family: Chevy Small Block
• Deck Height (in.): 9.025 in.
• Engine Balance: External
• Engine Block Material: Cast iron
• Main Bolt Style: 4-bolt
• Main Journal Type: Chevy 350
• Part Type: Short Block Engines
• Piston Material: Hypereutectic aluminum

Included: Harmonic Balancer, Oil Pan, Timing Cover.

Actual Engine Displacement: 6.3L/383

Assembled: Yes

Brand: BluePrint Engines

Connecting Rod Beam Style: I-beam

Connecting Rod Material: Cast iron

Crankshaft Material: Cast iron

Crate Engine Family: Chevy Small Block

Deck Height (in.): 9.025 in.

Engine Balance: External

Engine Block Material: Cast iron

Flexplate Included: No

Flywheel Included: No

Harmonic Balancer Included: Yes

Main Bolt Style: 4-bolt

Main Journal Type: Chevy 350

Manufacturer's Part Number: BP38318SP

Notes: Pistons have a +12cc dish and Hastings moly rings. Includes a high-volume oil pump and a hydraulic roller camshaft. Camshaft specifications @0.050: 0.555 in. intake/ 0.555 in exhaust, 230 degree intake/ 236 degree exhaust with 1.6 rockers. Lobe separation is 110 degrees. Internally balanced (neutral) front 8 in. harmonic balancer and late-style 1986-up style 350 flexplate required.

Oil Pan Included: Yes

Part Type: Short Block Engines

Piston Material: Hypereutectic aluminum

Product Line: BluePrint Engines GM 383 C.I.D. Stroker Short Block Plus Engines

Quantity: Sold individually.

Rear Main Seal Style: 1-piece

Remanufactured: No

Short Block Piston Style: Dish

Timing Cover Included: Yes

UPC: 816671020533
