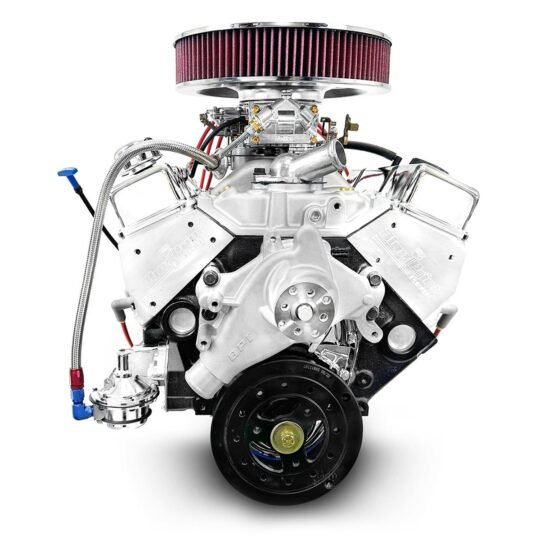

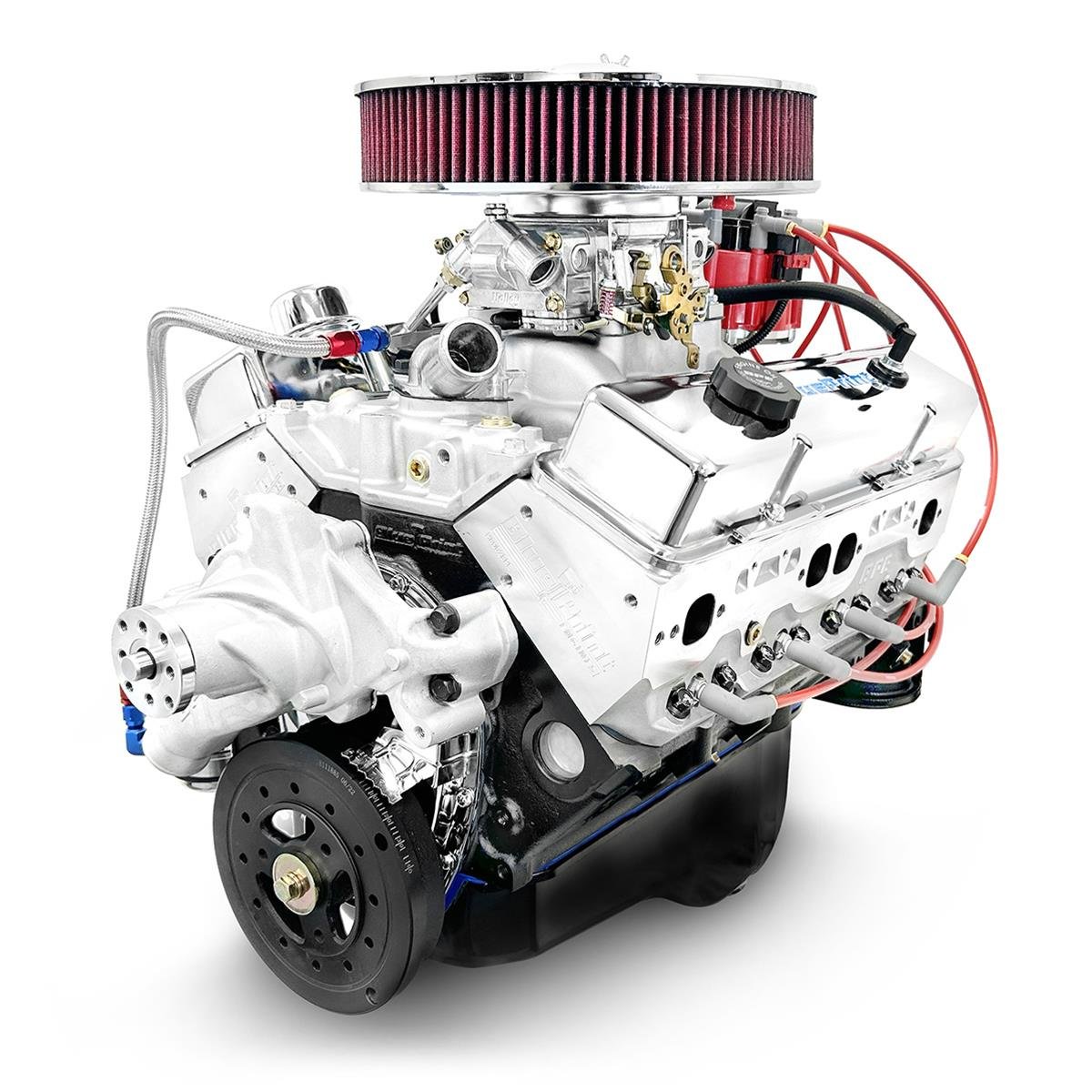

BluePrint Engines BP38318CTC1D GM 383 Dressed Stroker Long Block Crate Engine – 436 HP

The BluePrint BP38318CTC1D is a 383 (6.3L) Chevy small block stroker dressed long block rated 436 HP and 443 lb.-ft., with 10.0:1 compression, aluminum heads with 0.500-inch raised exhaust ports and a 750 CFM carburetor. Includes air cleaner, carburetor, heads, distributor, balancer, intake, oil pan, plug wires, plugs, timing cover, valve covers and water pump; computer, flexplate, flywheel, supercharger, throttle body and harness are not included.

Specifications

• Brand: BluePrint Engines
• Part / Model Number: BP38318CTC1D
• Actual Engine Displacement: 6.3L/383
• Advertised Compression Ratio: 10.0:1
• Assembled: Yes
• Cam Style: Hydraulic roller
• Crate Engine Cylinder Head Material: Aluminum
• Crate Engine Family: Chevy Small Block
• Engine Balance: External
• Engine Block Material: Cast iron
• Intake Manifold Style: Carbureted
• Part Type: Crate Engines
• Product Line: BluePrint Engines GM 383 C.I.D. 436 HP Dressed Stroker Long Block Crate Engines
• Rear Main Seal Style: 1-piece
• Remanufactured: No

Included: Air Cleaner, Carburetor, Cylinder Heads, Distributor, Harmonic Balancer, Intake Manifold, Oil Pan, Spark Plug Wires, Spark Plugs, Timing Cover, Valve Covers, Water Pump.

Actual Engine Displacement: 6.3L/383

Advertised Compression Ratio: 10.0:1

Air Cleaner Included: Yes

Assembled: Yes

Brand: BluePrint Engines

Cam Style: Hydraulic roller, OE roller

Carburetor Included: Yes

Computer Included: No

Crate Engine Cylinder Head Material: Aluminum

Crate Engine Family: Chevy Small Block

Cylinder Heads Included: Yes

Distributor Included: Yes

Engine Balance: External

Engine Block Material: Cast iron

Flexplate Included: No

Flywheel Included: No

Harmonic Balancer Included: Yes

Intake Manifold Included: Yes

Intake Manifold Style: Carbureted

Manufacturer's Part Number: BP38318CTC1D

Notes: Ready to drop in and includes fuel pump, 750 cfm carburetor, and HEI distributor. Will not clear stock Corvette hood. Passenger side dipstick. Block is drilled and tapped for clutch linkage.

Oil Pan Included: Yes

Part Type: Crate Engines

Product Line: BluePrint Engines GM 383 C.I.D. 436 HP Dressed Stroker Long Block Crate Engines

Quantity: Sold individually.

Rear Main Seal Style: 1-piece

Remanufactured: No

Spark Plug Wires Included: Yes

Spark Plugs Included: Yes

Special Attention: Cylinder heads feature a 0.500 in. raised exhaust port.

Stall Speed Rating RPM Range: 2,000-2,400

Supercharger Included: No

Throttle Body Included: No

Timing Cover Included: Yes

UPC: 00887753743862

Valve Covers Included: Yes

Water Pump Included: Yes

Water Pump Style: Long

Wiring Harness Included: No
