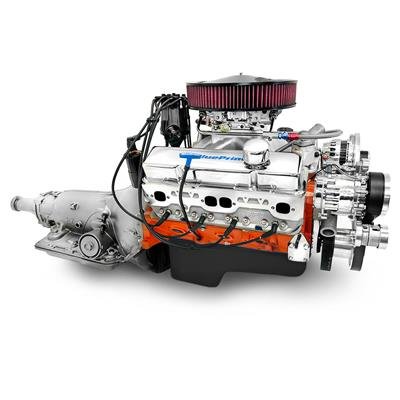

BluePrint Builder Series B454FKTKX 454 EFI Crate Engine & TKX Transmission Combo – 563 HP

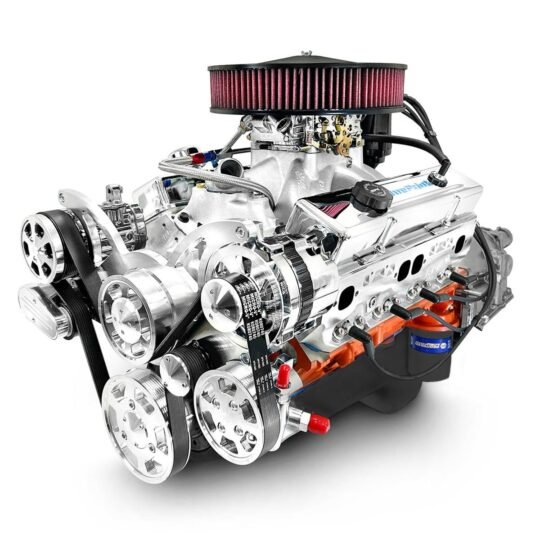

The BluePrint Builder Series B454FKTKX combines a 454/563 HP Standard Edition Chevy small block stroker with Sniper 2 fuel injection, cast aluminum heads, rear sump and polished pulley kit with a TKX manual transmission. Includes computer, heads, distributor, flywheel, balancer, intake, oil pan, plug wires, plugs, throttle body, timing cover, valve covers, water pump and harness; carburetor, flexplate, torque converter and transmission controller are not included.

Specifications

• Brand: BluePrint Engines
• Part / Model Number: B454FKTKX
• Assembled: Yes
• Crate Engine Family: Chevy Small Block
• Cylinder Head Material: Cast aluminum
• Engine Assembly Style: Long block
• Notes: Includes a Sniper 2 fuel injection system. Oil pan has a rear sump.
• Part Type: Engine and Transmission Combos

Included: Computer, Cylinder Heads, Distributor, Flywheel, Harmonic Balancer, Intake Manifold, Oil Pan, Spark Plug Wires, Spark Plugs, Throttle Body, Timing Cover, Valve Covers, Water Pump, Wiring Harness.

Assembled: Yes

Brand: BluePrint Engines

Carburetor Included: No

Computer Included: Yes

Crate Engine Family: Chevy Small Block

Cylinder Head Material: Cast aluminum

Cylinder Heads Included: Yes

Distributor Included: Yes

Engine Assembly Style: Long block

Flexplate Included: No

Flywheel Included: Yes

Harmonic Balancer Included: Yes

Intake Manifold Included: Yes

Manufacturer's Part Number: B454FKTKX

Notes: Includes a Sniper 2 fuel injection system. Oil pan has a rear sump.

Oil Pan Included: Yes

Part Type: Engine and Transmission Combos

Product Line: BluePrint Builder Series 454/563HP Standard Edition EFI Crate Engine and TKX Transmission Combos

Quantity: Sold as a kit.

Spark Plug Wires Included: Yes

Spark Plugs Included: Yes

Special Attention: Includes a polished finish accessory drive system with a reverse rotation short water pump, type II power steering pump, remote power steering reservoir, 140 amp 1-wire alternator, and a 7B10 peanut style air conditioning compressor.

Throttle Body Included: Yes

Timing Cover Included: Yes

Torque Converter Included: No

Transmission Controller Included: No

UPC: 00887753983367

Valve Covers Included: Yes

Water Pump Included: Yes

Wiring Harness Included: Yes
