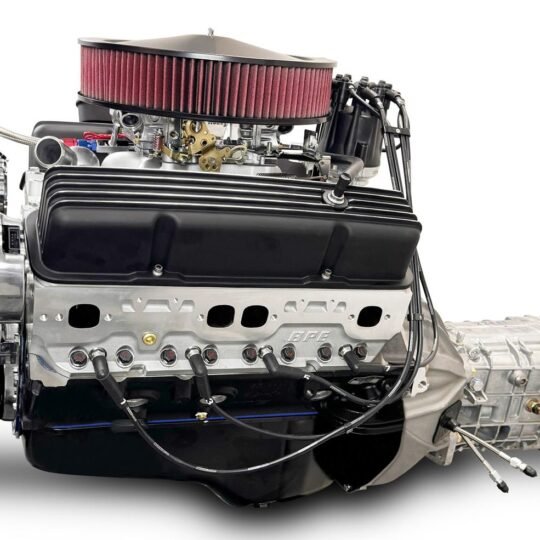

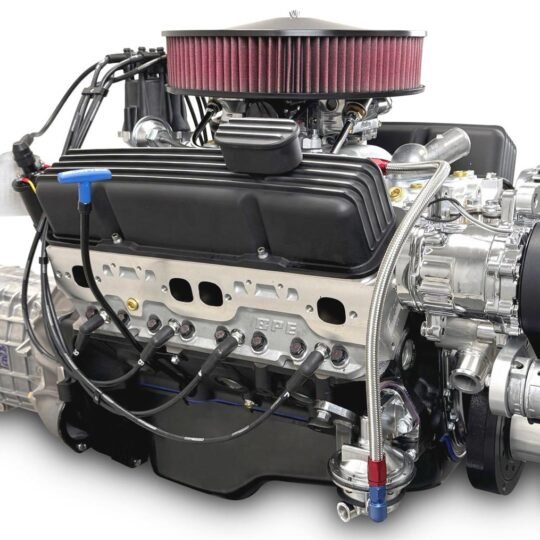

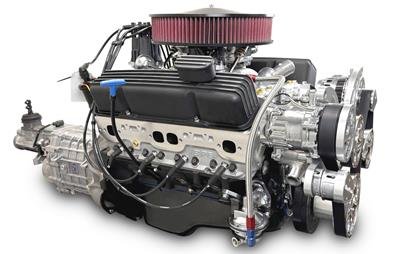

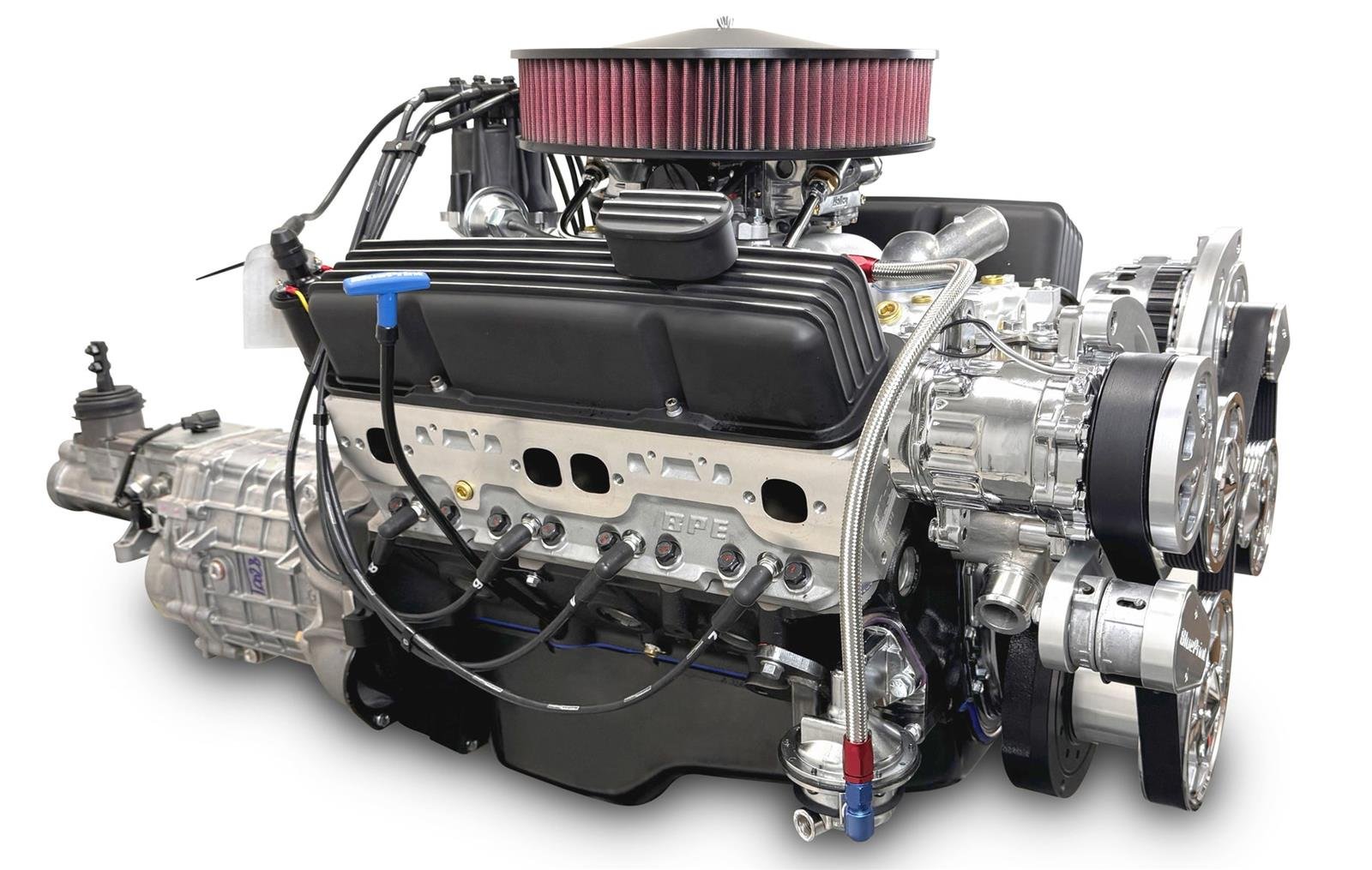

BluePrint Builder Series B383KTKX 383 Carbureted Crate Engine & TKX Transmission Combo – 436 HP

The BluePrint Builder Series B383KTKX combines a carbureted 383/436 HP Standard Edition Chevy small block (cast aluminum heads, polished pulley kit) with a TKX manual transmission. Includes carburetor, heads, distributor, flywheel, balancer, intake, oil pan, plug wires, plugs, timing cover, valve covers and water pump; computer, flexplate, throttle body, torque converter, transmission controller and harness are not included.

Specifications

• Brand: BluePrint Engines
• Part / Model Number: B383KTKX
• Assembled: Yes
• Crate Engine Family: Chevy Small Block
• Cylinder Head Material: Cast aluminum
• Engine Assembly Style: Long block
• Part Type: Engine and Transmission Combos

Included: Carburetor, Cylinder Heads, Distributor, Flywheel, Harmonic Balancer, Intake Manifold, Oil Pan, Spark Plug Wires, Spark Plugs, Timing Cover, Valve Covers, Water Pump.

Assembled: Yes

Brand: BluePrint Engines

Carburetor Included: Yes

Computer Included: No

Crate Engine Family: Chevy Small Block

Cylinder Head Material: Cast aluminum

Cylinder Heads Included: Yes

Distributor Included: Yes

Engine Assembly Style: Long block

Flexplate Included: No

Flywheel Included: Yes

Harmonic Balancer Included: Yes

Intake Manifold Included: Yes

Manufacturer's Part Number: B383KTKX

Notes: Carburetor included is a classic 750 cfm vacuum secondary carburetor with electric choke. Oil pan has a rear sump.

Oil Pan Included: Yes

Part Type: Engine and Transmission Combos

Product Line: BluePrint Builder Series 383/436HP Standard Edition Carbureted Crate Engine and TKX Trans Combos

Quantity: Sold as a kit.

Spark Plug Wires Included: Yes

Spark Plugs Included: Yes

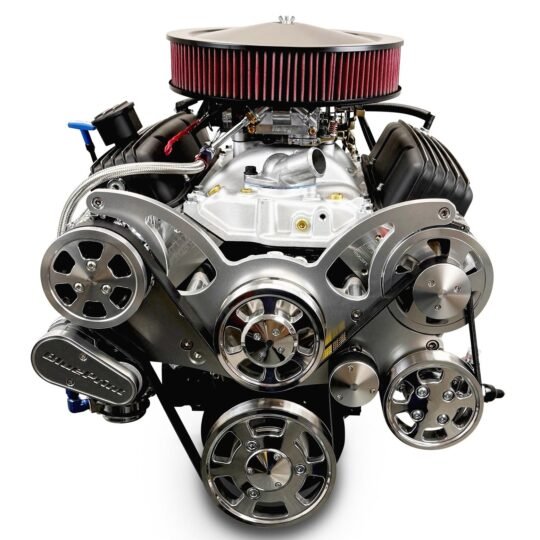

Special Attention: Includes a polished finish accessory drive system with a reverse rotation short water pump, type II power steering pump, remote power steering reservoir, 140 amp 1-wire alternator, and a 7B10 peanut style air conditioning compressor.

Throttle Body Included: No

Timing Cover Included: Yes

Torque Converter Included: No

Transmission Controller Included: No

UPC: 00887753983169

Valve Covers Included: Yes

Water Pump Included: Yes

Wiring Harness Included: No
