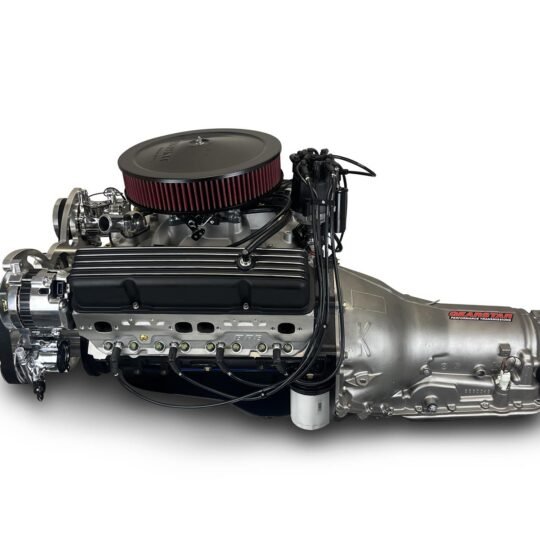

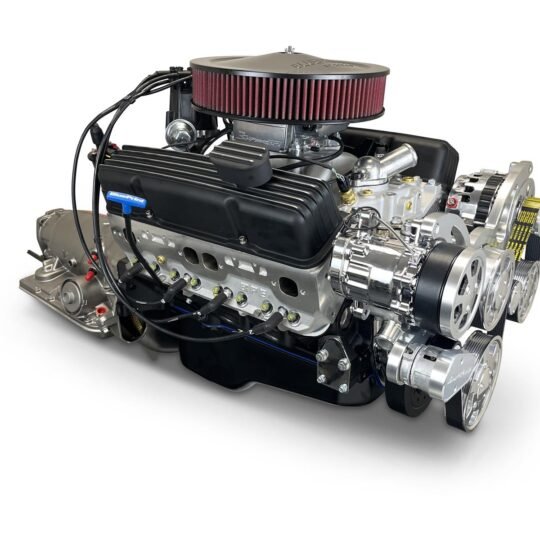

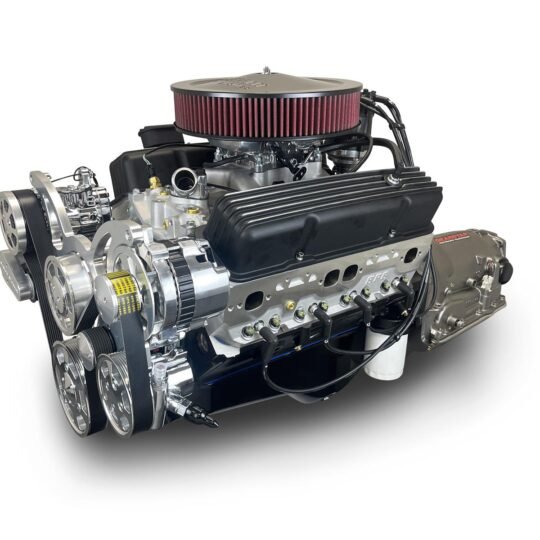

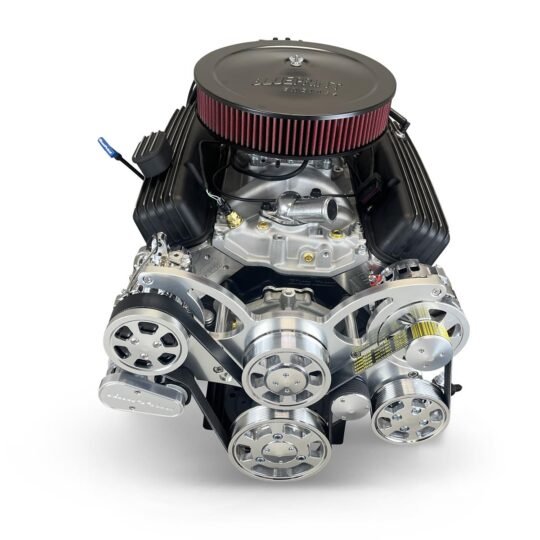

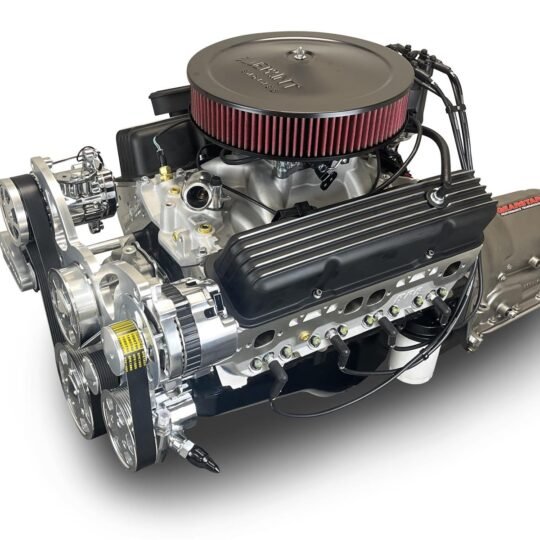

BluePrint Builder Series B383FK4WD 383 Truck EFI Crate Engine & 700R4 Transmission Combo – 405 HP

The BluePrint Builder Series B383FK4WD combines a fuel-injected 383/405 HP Truck Edition Chevy small block (cast aluminum heads, polished pulley kit) with a 4WD-ready 700R4 automatic transmission. Includes computer, heads, distributor, flexplate, balancer, intake, oil pan, plug wires, plugs, throttle body, timing cover, torque converter, valve covers, water pump and harness; carburetor, flywheel and transmission controller are not included.

Specifications

• Brand: BluePrint Engines
• Part / Model Number: B383FK4WD
• Assembled: Yes
• Crate Engine Family: Chevy Small Block
• Cylinder Head Material: Cast aluminum
• Engine Assembly Style: Long block
• Part Type: Engine and Transmission Combos

Included: Computer, Cylinder Heads, Distributor, Flexplate, Harmonic Balancer, Intake Manifold, Oil Pan, Spark Plug Wires, Spark Plugs, Throttle Body, Timing Cover, Torque Converter, Valve Covers, Water Pump, Wiring Harness.

Assembled: Yes

Brand: BluePrint Engines

Carburetor Included: No

Computer Included: Yes

Crate Engine Family: Chevy Small Block

Cylinder Head Material: Cast aluminum

Cylinder Heads Included: Yes

Distributor Included: Yes

Engine Assembly Style: Long block

Flexplate Included: Yes

Flywheel Included: No

Harmonic Balancer Included: Yes

Intake Manifold Included: Yes

Manufacturer's Part Number: B383FK4WD

Notes: Includes a Sniper 2 fuel injection system. Does not include a RWD tail housing. It has the extended 4WD output shaft, designed for transfer case to bolt directly to transmission case. Cylinder heads on this engine feature a 0.500 in. raised port vs. OEM. Oil pan has a rear sump.

Oil Pan Included: Yes

Part Type: Engine and Transmission Combos

Product Line: BluePrint Builder Series 383/405HP Truck Edition EFI Crate Engine and 700R4 Transmission Combos

Quantity: Sold as a kit.

Spark Plug Wires Included: Yes

Spark Plugs Included: Yes

Special Attention: Includes a polished finish accessory drive system with a reverse rotation short water pump, type II power steering pump, remote power steering reservoir, 140 amp 1-wire alternator, 7B10 peanut style air conditioning compressor.

Throttle Body Included: Yes

Timing Cover Included: Yes

Torque Converter Included: Yes

Transmission Controller Included: No

UPC: 00887753983114

Valve Covers Included: Yes

Water Pump Included: Yes

Wiring Harness Included: Yes
