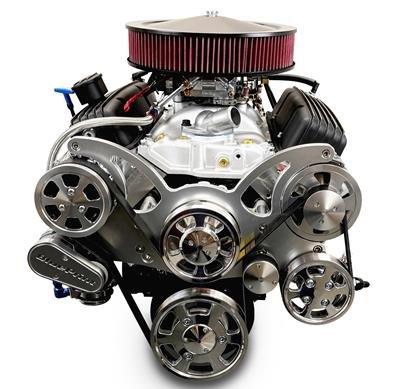

BluePrint Builder Series B383K4WD 383 Truck Carbureted Crate Engine & 700R4 Transmission Combo – 405 HP

The BluePrint Builder Series B383K4WD combines a carbureted 383/405 HP Truck Edition Chevy small block (cast aluminum heads, polished pulley kit) with a 4WD-ready 700R4 automatic transmission. Includes carburetor, heads, distributor, flexplate, balancer, intake, oil pan, plug wires, plugs, timing cover, torque converter, valve covers and water pump; computer, flywheel, throttle body, transmission controller and harness are not included.

Specifications

• Brand: BluePrint Engines
• Part / Model Number: B383K4WD
• Assembled: Yes
• Crate Engine Family: Chevy Small Block
• Cylinder Head Material: Cast aluminum
• Engine Assembly Style: Long block
• Part Type: Engine and Transmission Combos

Included: Carburetor, Cylinder Heads, Distributor, Flexplate, Harmonic Balancer, Intake Manifold, Oil Pan, Spark Plug Wires, Spark Plugs, Timing Cover, Torque Converter, Valve Covers, Water Pump.

Assembled: Yes

Brand: BluePrint Engines

Carburetor Included: Yes

Computer Included: No

Crate Engine Family: Chevy Small Block

Cylinder Head Material: Cast aluminum

Cylinder Heads Included: Yes

Distributor Included: Yes

Engine Assembly Style: Long block

Flexplate Included: Yes

Flywheel Included: No

Harmonic Balancer Included: Yes

Intake Manifold Included: Yes

Manufacturer's Part Number: B383K4WD

Notes: Carburetor included is a classic 750 cfm vacuum secondary carburetor with electric choke. RWD tail housing not included. It has the extended 4WD output shaft, designed for transfer case to bolt directly to transmission. Cylinder heads feature a 0.500 in. raised port. Oil pan has a rear sump.

Oil Pan Included: Yes

Part Type: Engine and Transmission Combos

Product Line: BluePrint Builder Series 383/405HP Truck Edition Carbureted Crate Engine and 700R4 Trans Combos

Quantity: Sold as a kit.

Spark Plug Wires Included: Yes

Spark Plugs Included: Yes

Special Attention: Includes a polished finish accessory drive system with a reverse rotation short water pump, type II power steering pump, remote power steering reservoir, 140 amp 1-wire alternator, 7B10 peanut style air conditioning compressor.

Throttle Body Included: No

Timing Cover Included: Yes

Torque Converter Included: Yes

Transmission Controller Included: No

UPC: 00887753983145

Valve Covers Included: Yes

Water Pump Included: Yes

Wiring Harness Included: No
